A good PCB layout for the LTC2959IDDB involves keeping the power and ground planes separate, using a solid ground plane under the device, and minimizing the distance between the device and the bypass capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
Choose bypass capacitors with a low equivalent series resistance (ESR) and a high self-resonant frequency (SRF). A 10uF ceramic capacitor with an X7R or X5R dielectric is a good choice. Place the bypass capacitors as close as possible to the device's power pins.
The maximum ambient temperature for the LTC2959IDDB is 105°C. However, the device's junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to keep the junction temperature within the specified limit.
Yes, the LTC2959IDDB is designed to operate in high-vibration environments. However, ensure that the device is properly soldered and the PCB is securely fastened to prevent mechanical stress. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
Start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly configured and that the input and output capacitors are correctly sized. Use an oscilloscope to check for noise, ringing, or oscillations on the output. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC2959IDDB#TRMPBF Overview

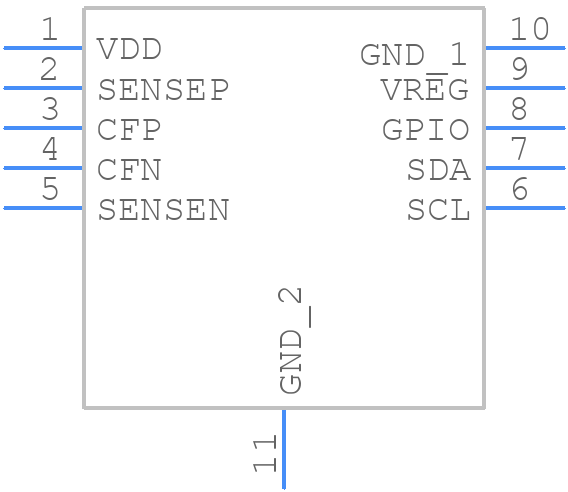

Use the download button to access the LTC2959IDDB#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29,
or try a keyword search, such as Power Management Circuits
