LTC2971HY#PBF - Analog Devices

Description: 2-Channel ?60V Power System Manager

Download LTC2971HY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

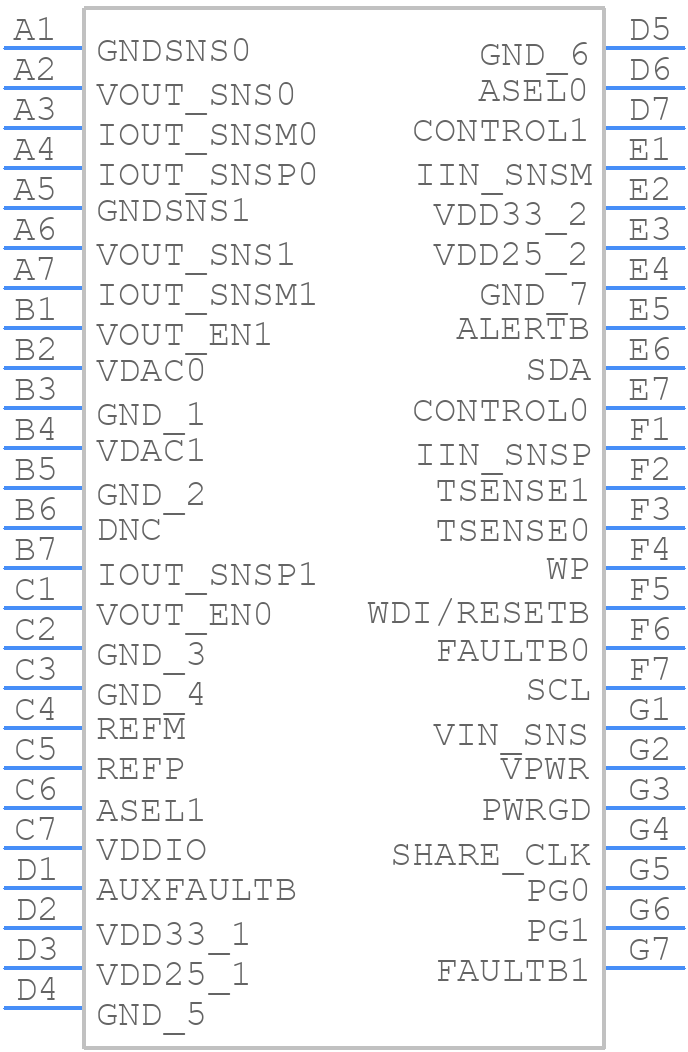

Symbol
LTC2971HY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2971HY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA 49-Lead (7.00mm × 7.00mm × 1.44mm)
click to zoom
3D Models
LTC2971HY#PBF - Analog Devices - 3D model - BGA - BGA 49-Lead (7.00mm × 7.00mm × 1.44mm)
click to zoom

LTC2971HY#PBF Details

  • Manufacturer Part Number:

    LTC2971HY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    05-08-1615

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PBGA-B40

  • JESD-609 Code:

    e1

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA49,7X7,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.64 mm

  • Supply Current-Max (Isup):

    8.5 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7 mm

LTC2971HY#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2971HY#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To optimize the performance of the LTC2971HY#PBF in a high-temperature environment, ensure good thermal conduction by using a heat sink or thermal pad, and consider derating the device's output current and voltage according to the datasheet's thermal derating curves.
  • Using a lower input voltage than the recommended range may result in reduced output voltage accuracy and increased output noise, while using a higher input voltage may cause the device to exceed its absolute maximum ratings and potentially lead to damage or failure.
  • To ensure accurate voltage monitoring and control with the LTC2971HY#PBF, use high-precision external resistors and capacitors, and consider using a voltage reference with low temperature coefficient and high accuracy. Additionally, ensure that the device is properly calibrated and configured according to the datasheet's recommendations.
  • Potential sources of noise and interference in the LTC2971HY#PBF include switching noise from the power supply, electromagnetic interference (EMI), and radio-frequency interference (RFI). These can be mitigated by using a low-noise power supply, shielding the device and its connections, and using noise-filtering capacitors and resistors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2971HY#PBF Overview

Use the download button to access the LTC2971HY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits
