LTC2971IY#PBF - Analog Devices

Description: 2-Channel ?60V Power System Manager

Download LTC2971IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

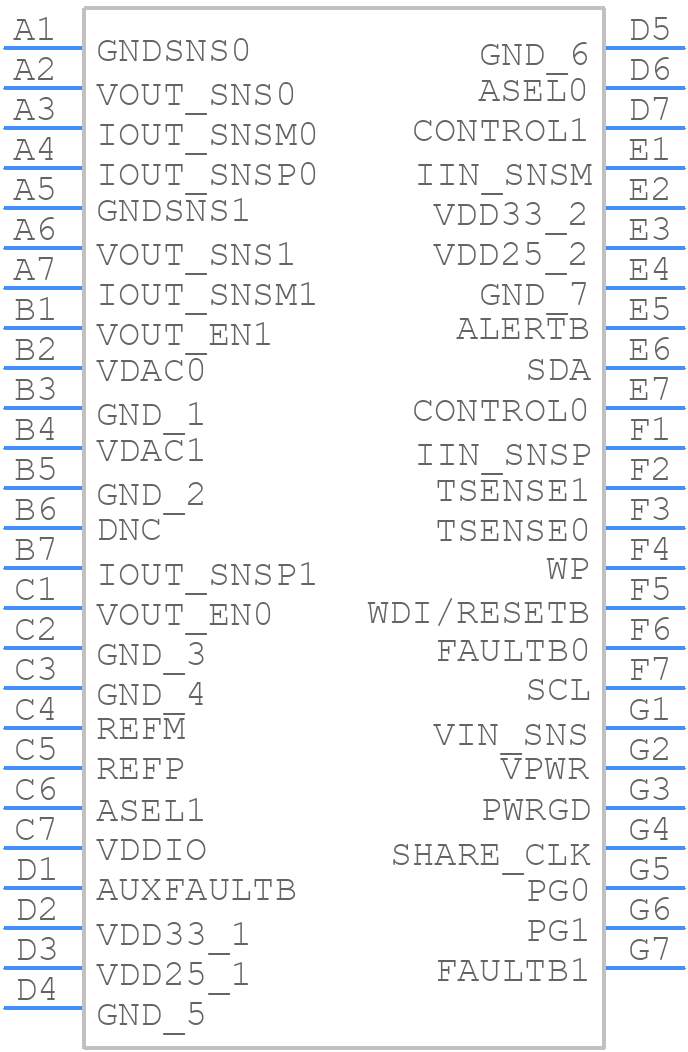

LTC2971IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2971IY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA 49-Lead (7.00mm × 7.00mm × 1.44mm)
click to zoom
3D Models
LTC2971IY#PBF - Analog Devices - 3D model - BGA - BGA 49-Lead (7.00mm × 7.00mm × 1.44mm)
click to zoom

LTC2971IY#PBF Details

  • Manufacturer Part Number:

    LTC2971IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    05-08-1615

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PBGA-B40

  • JESD-609 Code:

    e1

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA49,7X7,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.64 mm

  • Supply Current-Max (Isup):

    8.5 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7 mm

LTC2971IY#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2971IY#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To optimize the performance of the LTC2971IY#PBF in a high-temperature environment, it is recommended to use a heat sink, ensure good airflow, and use a thermally conductive material for the PCB. Additionally, the device should be operated within its specified temperature range, and the input and output capacitors should be selected to handle high temperatures.
  • The maximum input voltage that the LTC2971IY#PBF can handle is 15V, but it is recommended to operate the device within its specified input voltage range of 4.5V to 14V to ensure reliable operation and to prevent damage to the device.
  • To troubleshoot issues with the LTC2971IY#PBF, it is recommended to check the input and output voltages, the current drawn from the input, and the device's operating temperature. Additionally, the device's fault flags should be monitored to identify any potential issues. A thorough review of the device's datasheet and application notes can also help in identifying and resolving issues.
  • Yes, the LTC2971IY#PBF can be used in a redundant power supply configuration. The device's built-in redundancy features, such as its redundant input and output stages, make it well-suited for use in redundant power supply applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2971IY#PBF Overview

Use the download button to access the LTC2971IY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits
