LTC2972CUJF#PBF - Analog Devices

Description: n Sequence, Trim, Margin and Supervise Two Power Supplies n Manage Faults, Monitor Telemetry n PMBus Compliant Command Set n Supported by LTpowerPlay® GUI n Margin or Trim Supplies to Within 0.25% of Target n Monitor Input Current (±1%) and Accumulate Energy n Fast OV/UV Supervisors per Channel n Coordinate Sequencing and Fault Management Across Multiple ADI PSM Devices n Automatic Fault Logging to Internal EEPROM n Operate Autonomously Without Additional Software n Configurable Power Good Outpu

Download LTC2972CUJF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

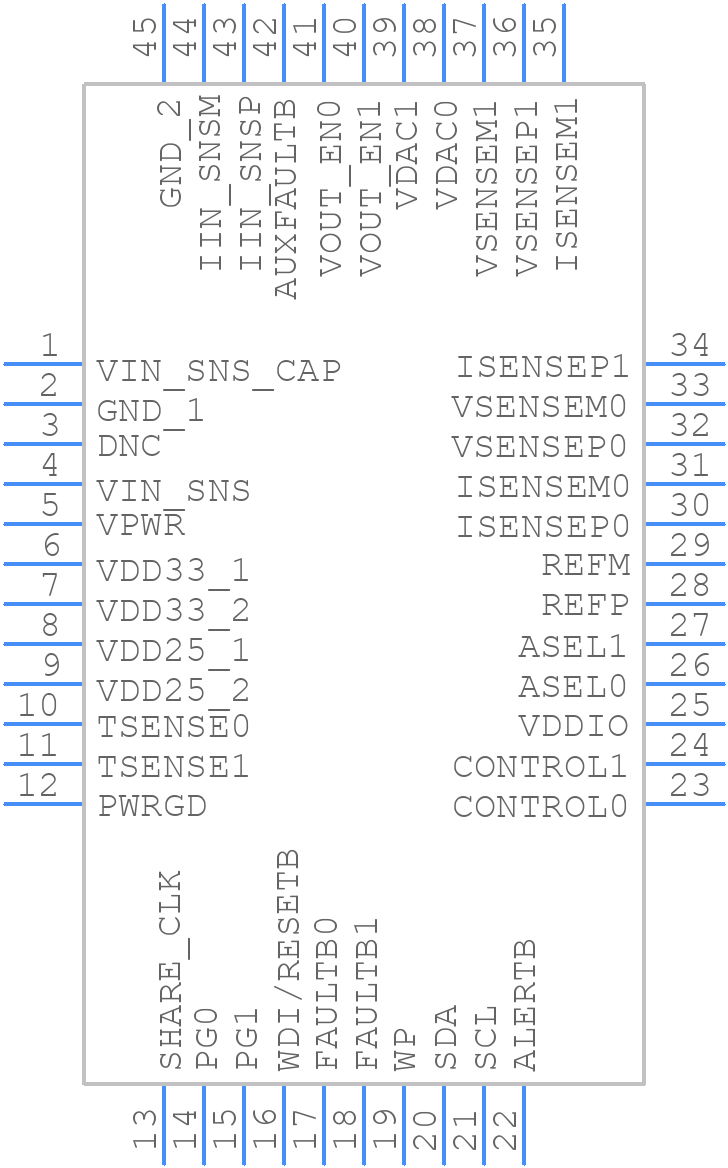

Symbol
LTC2972CUJF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2972CUJF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 44-Lead Plastic QFN (6mm × 7mm)
click to zoom
3D Models
LTC2972CUJF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 44-Lead Plastic QFN (6mm × 7mm)
click to zoom

LTC2972CUJF#PBF Details

  • Manufacturer Part Number:

    LTC2972CUJF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1501

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATED WITH 3.3V SUPPLY

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PQCC-N44

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

LTC2972CUJF#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2972CUJF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the power supplies. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accurate voltage monitoring, it's essential to use a high-precision voltage reference, such as the LTC6655-5, and to minimize the resistance of the voltage sense lines. Additionally, the voltage sense lines should be routed close to the IC and away from noisy signals.
  • The maximum capacitance on the VCC pin of the LTC2972CUJF is 10uF. Exceeding this value can cause instability in the internal voltage regulator.
  • Yes, the LTC2972CUJF can be used in a hot-swap application. However, it's essential to ensure that the IC is properly powered down before the hot-swap event, and that the voltage sense lines are properly terminated to prevent voltage spikes.
  • The LTC2972CUJF has a built-in overvoltage protection feature that can be enabled by connecting the OV pin to a voltage reference. The OV pin can be connected to a resistor divider network that sets the overvoltage threshold.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2972CUJF#PBF Overview

Use the download button to access the LTC2972CUJF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits
