LTC2979IY#PBF - Analog Devices

Description: 16-Channel PMBus Low-Voltage Power System Manager

Download LTC2979IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2979IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

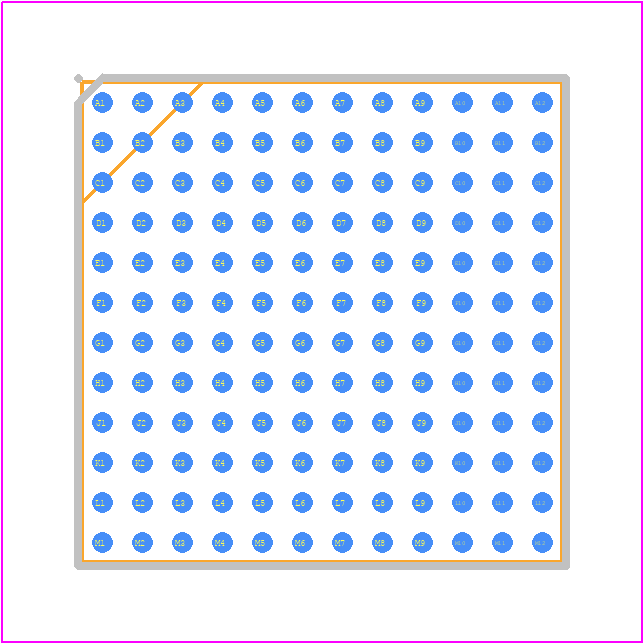

LTC2979IY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 144-Lead (12mm × 12mm × 1.29mm)
click to zoom
3D Models
LTC2979IY#PBF - Analog Devices - 3D model - BGA - BGA Package 144-Lead (12mm × 12mm × 1.29mm)
click to zoom

LTC2979IY#PBF Details

  • Manufacturer Part Number:

    LTC2979IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-144

  • Pin Count:

    144

  • Manufacturer Package Code:

    05-08-1967

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PBGA-B144

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA144,12X12,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Seated Height-Max:

    1.34 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    3.47 V

  • Supply Voltage-Min (Vsup):

    3.13 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.55V

  • Width:

    12 mm

LTC2979IY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2979IY#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The recommended power-up sequence for the LTC2979IY#PBF is to first apply the analog supply voltage (VIN), followed by the digital supply voltage (VCC). During power-down, the sequence should be reversed. It's also important to ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The maximum allowed capacitance on the SENSE pins of the LTC2979IY#PBF is 10nF. Exceeding this value can cause instability and affect the device's performance.
  • Calibration of the LTC2979IY#PBF involves adjusting the internal voltage reference and the gain of the device. This can be done using the CAL pin and the GAIN pin, respectively. The datasheet provides a detailed calibration procedure that should be followed to ensure optimal performance.
  • The thermal derating of the LTC2979IY#PBF is 1.5mA/°C above 70°C. This means that the device's current output will decrease as the temperature increases above 70°C. It's essential to ensure proper thermal management to prevent overheating and maintain optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2979IY#PBF Overview

Use the download button to access the LTC2979IY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
