LTC2992HMS-1#PBF - Analog Devices

Description: Current & Power Monitors & Regulators Dual Wide Range Power Monitor (with inverted SDAO)

Download LTC2992HMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

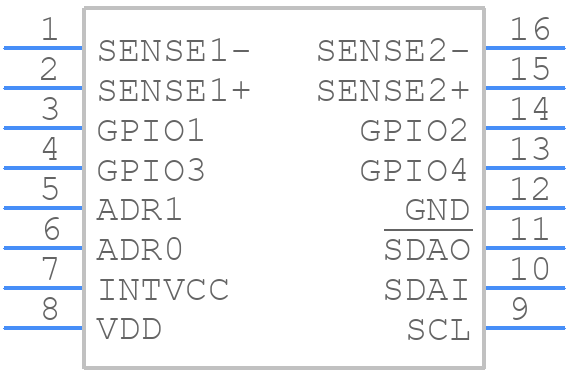

Symbol
LTC2992HMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2992HMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP_16-
click to zoom
3D Models
LTC2992HMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP_16-
click to zoom

LTC2992HMS-1#PBF Details

  • Manufacturer Part Number:

    LTC2992HMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2992HMS-1#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC2992HMS-1#PBF is -40°C to 125°C.
  • To ensure accurate voltage measurements, make sure to follow proper PCB layout and routing guidelines, use a low-noise power supply, and minimize noise coupling to the device. Additionally, use the recommended input filtering and averaging techniques to reduce noise and improve measurement accuracy.
  • No, the LTC2992HMS-1#PBF is designed to measure voltages up to 15V. Measuring voltages higher than 15V may damage the device. If you need to measure higher voltages, consider using an external voltage divider or attenuator to bring the voltage within the device's specified range.
  • The LTC2992HMS-1#PBF is configured for I2C communication by default. Make sure to connect the SCL and SDA pins to the I2C bus, and use the correct I2C address (0x1C or 0x1D) depending on the state of the ADDR pin. Refer to the datasheet for more information on I2C communication and addressing.
  • The typical current consumption of the LTC2992HMS-1#PBF is around 1.5mA, but this can vary depending on the operating frequency, voltage, and other factors. Refer to the datasheet for more information on power consumption and power management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2992HMS-1#PBF Overview

Use the download button to access the LTC2992HMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
