LTC2992IDE#PBF - Analog Devices

Description: Rail-to-Rail Input Range: 0V to 100V n Wide Input Supply Range: 2.7V to 100V n Measures Current, Voltage, and Power n Shunt Regulator for Supplies >100V n 8-/12-Bit ADCs with Less Than ±0.3% Total Unadjusted Error n Four General P

Download LTC2992IDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

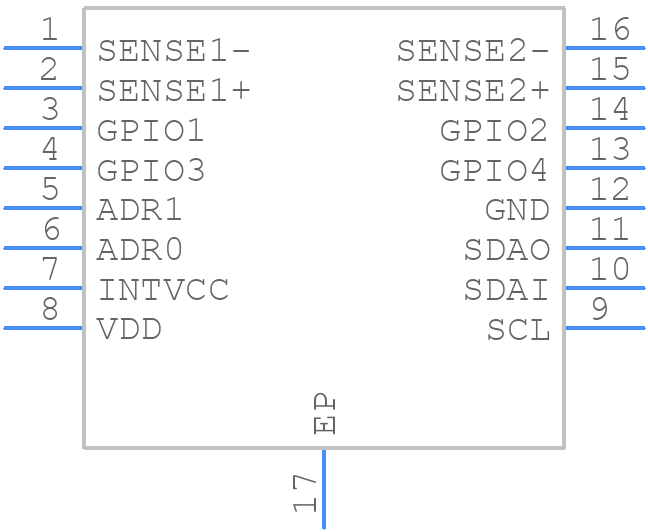

LTC2992IDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2992IDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC2992IDE#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC2992IDE#PBF Details

  • Manufacturer Part Number:

    LTC2992IDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2992IDE#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2992IDE#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the device close to the power source. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure accurate voltage monitoring with the LTC2992IDE#PBF, it is recommended to use a high-accuracy voltage reference, such as the LTC6655-5, and to calibrate the device during manufacturing. Additionally, it is important to ensure that the voltage monitoring inputs are properly filtered and shielded to minimize noise and interference.
  • The maximum operating temperature range for the LTC2992IDE#PBF is -40°C to 125°C. However, it is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • The LTC2992IDE#PBF can be interfaced with a microcontroller or FPGA using a standard I2C or SPI interface. The device provides a 7-bit or 10-bit address, allowing multiple devices to be connected to the same bus. It is recommended to use a level translator or buffer to ensure signal integrity and to prevent damage to the device or the microcontroller/FPGA.
  • The power consumption of the LTC2992IDE#PBF depends on the operating mode and the frequency of the device. In normal operation, the device consumes approximately 1.5mA of current. In shutdown mode, the device consumes less than 1μA of current.
