LTC2992IMS-1#PBF - Analog Devices

Description: Dual Wide Range Power Monitor

Download LTC2992IMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

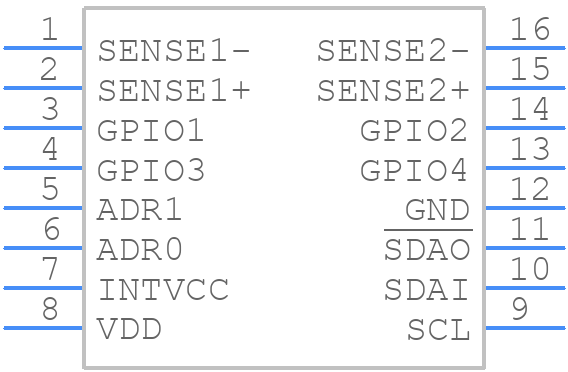

Symbol
LTC2992IMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2992IMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A
click to zoom
3D Models
LTC2992IMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A
click to zoom

LTC2992IMS-1#PBF Details

  • Manufacturer Part Number:

    LTC2992IMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2992IMS-1#PBF Frequently Asked Questions (FAQs)

  • The datasheet provides general guidelines for layout and placement, but it's recommended to follow Analog Devices' application note AN137 for specific guidance on layout, thermal management, and noise reduction. Additionally, it's essential to keep the device away from heat sources, use a solid ground plane, and minimize trace lengths and widths to reduce thermal gradients and noise.
  • The LTC2992IMS-1#PBF does not require calibration, as it is a highly accurate device with a built-in temperature sensor. However, it's essential to follow the datasheet's guidelines for temperature measurement accuracy, including using a high-accuracy voltage reference and ensuring the device is operated within its specified temperature range.
  • The maximum cable length for the remote temperature sensing feature depends on the specific application and the type of cable used. As a general guideline, Analog Devices recommends keeping the cable length as short as possible (less than 1 meter) to minimize noise and signal degradation. For longer cable lengths, it's recommended to use shielded cables and follow proper noise reduction techniques.
  • The LTC2992IMS-1#PBF is a robust device designed to operate in a variety of environments, including those with high vibration and shock. However, it's essential to follow proper mounting and packaging guidelines to ensure the device's reliability and accuracy. Additionally, it's recommended to perform environmental testing to ensure the device meets the specific requirements of the application.
  • To troubleshoot temperature measurement errors or inaccuracies, follow a systematic approach: 1) Verify the device's power supply and voltage reference, 2) Check the temperature sensor's connection and layout, 3) Ensure the device is operated within its specified temperature range, 4) Verify the measurement setup and configuration, and 5) Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2992IMS-1#PBF Overview

Use the download button to access the LTC2992IMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits
