LTC3025IDC#TRPBF - Analog Devices

Description: Wide Input Voltage Range: 0.9V to 5.5V n Stable with Ceramic Capacitors n Very Low Dropout: 45mV at 300mA n Adjustable Output Range: 0.4V to 3.6V n ±2% Voltage Accuracy over Temperature Supply Load n Low Noise: 80µVRMS (10Hz to 100kHz) n BIAS Voltage Range: 2.5V to 5.5V n Fast Transient Recovery n Shutdown Disconnects Load from VIN and VBIAS n Low Operating Current: IIN = 4µA, IBIAS = 50µA Typ n Low Shutdown Current: IIN = 1µA, IBIAS = 0.01µA Typ n Output Current Limit n Thermal Overload Protec

Download LTC3025IDC#TRPBF Model
Schematic

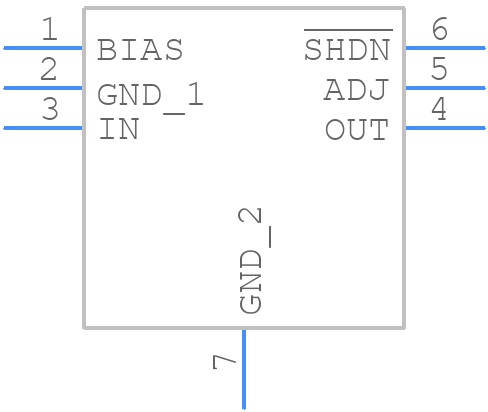

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3025IDC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC6 Package 6-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1703 Rev C)
click to zoom
3D Models
LTC3025IDC#TRPBF - Analog Devices  - 3D model - Small Outline No-lead - DC6 Package 6-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1703 Rev C)
click to zoom

LTC3025IDC#TRPBF Details

  • Manufacturer Part Number:

    LTC3025IDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WCCD-2, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1703

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.1 V

  • Dropout Voltage1-Nom:

    0.045 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.005

  • Load Regulation-Max(%):

    0.05%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3025IDC#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance.
  • To optimize the output voltage ripple, use a low-ESR output capacitor, minimize the output capacitor's equivalent series resistance (ESR), and ensure the output capacitor is properly decoupled from the input voltage.
  • The minimum input voltage required for the LTC3025 to operate is 2.5V, but it's recommended to keep it above 3V for optimal performance.
  • Yes, the LTC3025 is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • To ensure the output voltage is accurate, use a high-precision voltage reference, such as the internal 0.5% reference, and minimize the output voltage noise by using a low-noise output capacitor and proper PCB layout.
