LTC3026IMSE#PBF - Analog Devices

Description: n Input Voltage Range: 1.14V to 3.5V (with Boost Enabled) 1.14V to 5.5V (with External 5V Boost) n Low Dropout Voltage: 100mV at IOUT = 1.5A n Adjustable Output Range: 0.4V to 2.6V n Output Current: Up to 1.5A n Excellent Supply Rejection Even Near Dropout n Shutdown Disconnects Load from VIN and VBST n Low Operating Current: IIN = 950µA at VIN = 1.5V n Low Shutdown Current: IIN < 1µA (Typ), IBST = 0.1µA (Typ) n Stable with 10µF or Greater Ceramic Capacitors n Short-Circuit, Reverse Current Prot

Download LTC3026IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

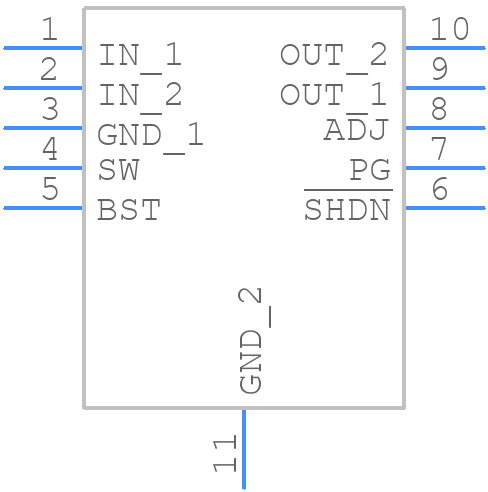

Symbol
LTC3026IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3026IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)-1
click to zoom
3D Models
LTC3026IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)-1
click to zoom

LTC3026IMSE#PBF Details

  • Manufacturer Part Number:

    LTC3026IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.25 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    2.6 V

  • Output Voltage1-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3026IMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal regulator.
  • To ensure the LTC3026IMSE#PBF operates within its recommended operating conditions, make sure to follow the recommended voltage and current ratings, and keep the device within the specified temperature range (-40°C to 125°C).
  • The EN (enable) pin is used to turn the device on or off. To enable the device, connect the EN pin to VIN or a logic high signal. To disable the device, connect the EN pin to GND or a logic low signal.
  • The output voltage of the LTC3026IMSE#PBF can be configured by connecting resistors R1 and R2 between the FB (feedback) pin and the output voltage pin. The output voltage is determined by the ratio of R1 to R2.
  • The maximum output current that the LTC3026IMSE#PBF can provide is 2A, but it's recommended to keep the output current below 1.5A for optimal performance and to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3026IMSE#PBF Overview

Use the download button to access the LTC3026IMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC30, or try a keyword search, such as Linear Regulator ICs
