LTC3026IMSE#TRPBF - Analog Devices

Description: 1.5A Low Input Voltage VLDO Linear Regulator

Download LTC3026IMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

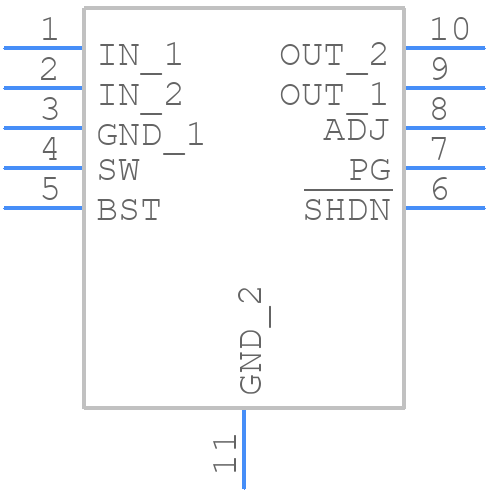

Symbol
LTC3026IMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3026IMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom
3D Models
LTC3026IMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom

LTC3026IMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC3026IMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.25 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    2.6 V

  • Output Voltage1-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3026IMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3026IMSE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To optimize the performance of the LTC3026IMSE, you should carefully select the input and output capacitors, choose the right inductor value, and optimize the PCB layout. You should also consider the operating frequency, input voltage, and output current requirements of your application.
  • The LTC3026IMSE has a maximum junction temperature of 125°C. To ensure reliable operation, you should ensure that the device is operated within the recommended temperature range, and provide adequate heat sinking and thermal management in your design.
  • Yes, the LTC3026IMSE is available in a variety of grades, including a high-reliability H-grade and a high-temperature MP-grade. These grades are designed for use in demanding applications such as aerospace, defense, and industrial control systems.
  • To troubleshoot issues with the LTC3026IMSE, you should first consult the datasheet and application notes to ensure that the device is being used correctly. You should also check the input and output voltages, currents, and frequencies to ensure that they are within the recommended specifications. If the issue persists, you may need to use specialized test equipment such as an oscilloscope or a spectrum analyzer to diagnose the problem.
