LTC3026IMSE-1#PBF - Analog Devices

Description: n Input Voltage Range: 1.14V to 5.5V n Low Dropout Voltage: 100mV at IOUT = 1.5A n Adjustable Output Range: 0.4V to 2.6V n Output Current: Up to 1.5A n Excellent Supply Rejection Even Near Dropout n Shutdown Disconnects Load from VIN and VBST n Low Operating Current: IIN = 95μA at VIN = 1.5V IBIAS = 175μA at VBIAS = 5V n Low Shutdown Current: IIN < 1μA (Typ), IBST = 0.1μA (Typ) n Stable with 10μF or Greater Ceramic Capacitors n Short-Circuit, Reverse Current Protected n Overtemperature Prote

Download LTC3026IMSE-1#PBF Model

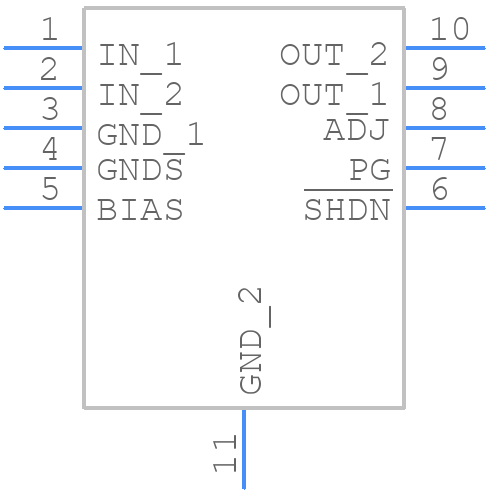

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3026IMSE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev H)..
click to zoom
3D Models
LTC3026IMSE-1#PBF - Analog Devices  - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev H)..
click to zoom

LTC3026IMSE-1#PBF Details

  • Manufacturer Part Number:

    LTC3026IMSE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.25 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    2.6 V

  • Output Voltage1-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3026IMSE-1#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC3026IMSE-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
  • The selection of input and output capacitors for the LTC3026IMSE-1#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the output voltage and current requirements.
  • The maximum ambient temperature range for the LTC3026IMSE-1#PBF is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C. It's recommended to ensure that the device is operated within the specified temperature range to ensure reliable operation and to prevent overheating.
  • Proper thermal management of the LTC3026IMSE-1#PBF involves ensuring that the device is mounted on a heat sink or a thermally conductive PCB, and that the device is operated within the specified temperature range. Additionally, it's recommended to use thermal interface materials such as thermal tape or thermal grease to improve heat transfer between the device and the heat sink or PCB.
  • The recommended input voltage range for the LTC3026IMSE-1#PBF is 2.9V to 15V. However, the device can operate with input voltages as low as 2.5V and as high as 18V. It's recommended to ensure that the input voltage is within the specified range to ensure reliable operation and to prevent damage to the device.
