Part Image

LTC3110EFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3110EFE#PBF - SUPERCAP CHARGER/BALANCER, 5.5V, TSSOP24

Download LTC3110EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

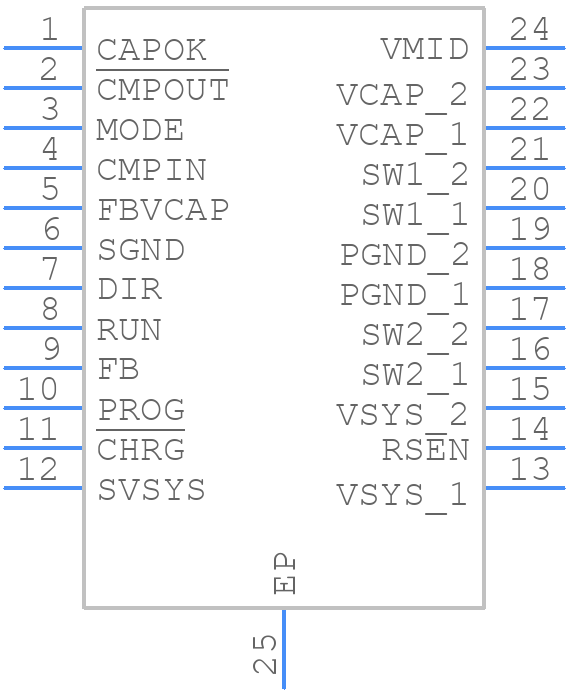

Symbol
LTC3110EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3110EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-24
click to zoom
3D Models
LTC3110EFE#PBF - Analog Devices - 3D model - Small Outline Packages - TSSOP-24
click to zoom

LTC3110EFE#PBF Details

  • Manufacturer Part Number:

    LTC3110EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1771

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3110EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3110 is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To optimize the inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100mΩ.
  • For optimal performance, keep the input and output capacitors close to the IC, and use a solid ground plane to reduce noise. Keep the high-current paths (e.g., from VIN to LX) short and wide, and avoid routing sensitive signals near the inductor.
  • To ensure good thermal performance, provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the IC. Keep the IC away from other heat sources, and avoid blocking airflow around the IC.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a voltage rating of at least 2x the maximum input voltage is recommended. Avoid using electrolytic capacitors due to their high ESR.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3110EFE#PBF Overview

Use the download button to access the LTC3110EFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC31, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
