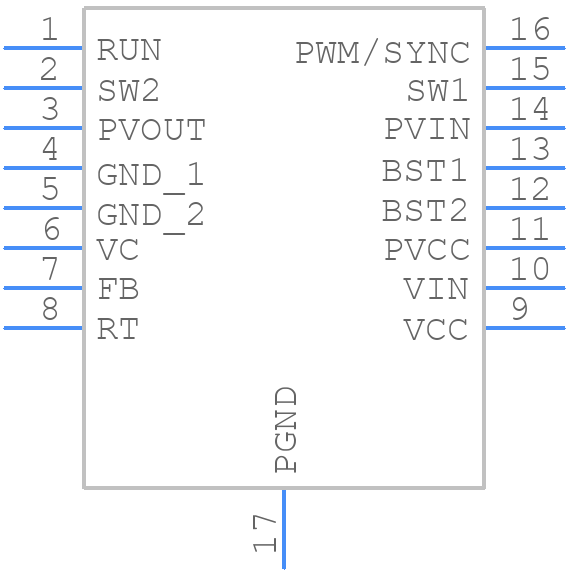

LTC3115IDHD-1#WTRPBF - Analog Devices

LTC3115IDHD-1#WTRPBF Details

• Manufacturer Part Number:

  LTC3115IDHD-1#WTRPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  05-08-1707

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDSO-N16

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2 A

• Output Voltage-Max:

  40 V

• Output Voltage-Min:

  2.7 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC16,.16,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  2000 kHz

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  4 mm
