LTC3124IFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3124IFE#PBF - SYNCHRONOUS STEP-UP DC/DC CONVERTER

Download LTC3124IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

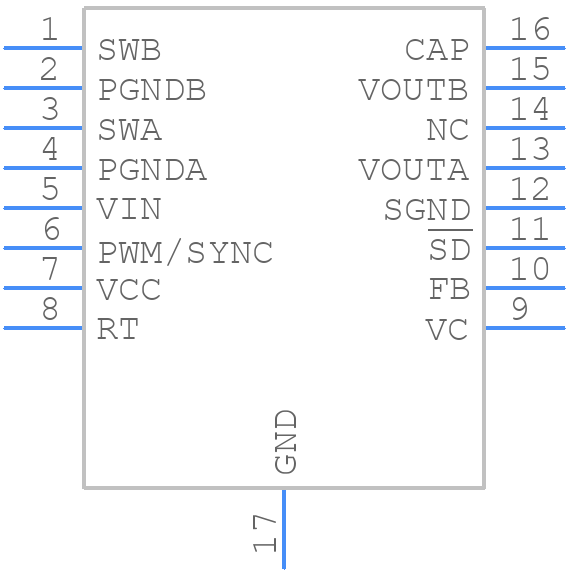

Symbol
LTC3124IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3124IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC3124IFE#PBF
click to zoom
3D Models
LTC3124IFE#PBF - Analog Devices - 3D model - Small Outline Packages - LTC3124IFE#PBF
click to zoom

LTC3124IFE#PBF Details

  • Manufacturer Part Number:

    LTC3124IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM WIDTH, LEAD FREE, PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BC)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 2.5 VOLT TO 15 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    2.5 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1170 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3124IFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 18V, but it's recommended to keep it below 15V for optimal performance and to prevent damage to the internal components.
  • To optimize the inductor selection, consider the following factors: inductance value, DC resistance, and saturation current. A good starting point is to choose an inductor with an inductance value between 1.5uH to 3.3uH, and a DC resistance less than 100mΩ. Also, ensure the inductor's saturation current is higher than the peak current drawn by the converter.
  • The RUN pin is an active-high enable input that allows the user to turn the converter on and off. To use it, connect the RUN pin to a logic-level signal (e.g., from a microcontroller) to enable or disable the converter. When the RUN pin is high, the converter is enabled, and when it's low, the converter is disabled.
  • The output voltage of the LTC3124 can be configured by connecting a resistive divider network between the VOUT pin and the GND pin. The resistive divider sets the output voltage according to the formula: VOUT = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The maximum output current that the LTC3124 can deliver is 2A. However, the actual output current may be limited by the input voltage, output voltage, and inductor selection. It's essential to ensure the converter is operated within its specified limits to prevent overheating and damage.
