LTC3130EMSE-1#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3130EMSE-1#PBF - DC/DC Switching Buck-Boost Regulator, Adjustable, 2.4V-25V in, 1.8V-12V out, 600 mA, MSOP-16

Download LTC3130EMSE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

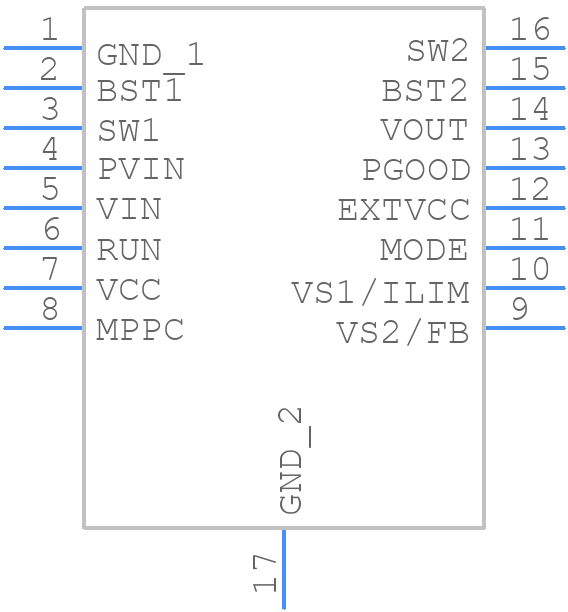

LTC3130EMSE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3130EMSE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC3130EMSE-1#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC3130EMSE-1#PBF Details

  • Manufacturer Part Number:

    LTC3130EMSE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS OUTPUT VOLTAGES= 3.3V, 5V, 12V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    0.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.7 A

  • Output Voltage-Max:

    1.85 V

  • Output Voltage-Min:

    1.75 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3130EMSE-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3130 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the input voltage should be well-regulated and free of noise.
  • The LTC3130 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
  • Yes, the LTC3130 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a qualified process. However, additional testing and validation may be required for specific applications.
  • To troubleshoot issues with the LTC3130, start by verifying the input voltage and current, and checking for any signs of overheating. Use an oscilloscope to check the output voltage and current waveforms. Also, ensure that the PCB layout and component selection meet the recommended guidelines.
