LTC3201EMS#PBF - Analog Devices

Description: IC LED DRIVER RGLTR 100MA 10MSOP

Download LTC3201EMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

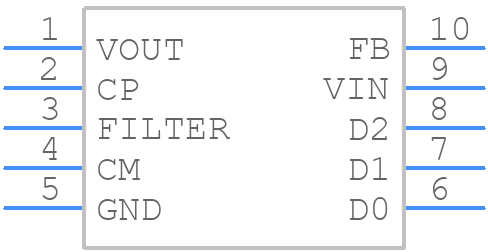

Symbol
LTC3201EMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3201EMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP+
click to zoom
3D Models
LTC3201EMS#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP+
click to zoom

LTC3201EMS#PBF Details

  • Manufacturer Part Number:

    LTC3201EMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    4.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1800 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3201EMS#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC3201EMS#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-frequency noise sources and to use a shielded enclosure to reduce electromagnetic interference.
  • To ensure the LTC3201EMS#PBF is properly powered and biased, it is recommended to use a high-quality power supply with low noise and ripple, and to follow the recommended voltage and current ratings specified in the datasheet. Additionally, it is important to ensure that the device is properly biased by connecting the VCC pin to a stable voltage source and the GND pin to a solid ground plane.
  • The LTC3201EMS#PBF has a maximum operating temperature range of -40°C to 125°C. To ensure the device operates within a safe temperature range, it is recommended to provide adequate heat sinking, such as using a thermal pad or heat sink, and to ensure good airflow around the device. Additionally, it is important to follow the recommended power dissipation and thermal resistance specifications in the datasheet.
  • To troubleshoot common issues with the LTC3201EMS#PBF, such as oscillation or instability, it is recommended to check the device's input and output waveforms using an oscilloscope, and to verify that the device is properly powered and biased. Additionally, it is important to check the layout and placement of the device and its surrounding components, and to ensure that the device is not exposed to high-frequency noise or electromagnetic interference.
  • The LTC3201EMS#PBF is designed to meet regulatory requirements for electromagnetic interference (EMI) and electromagnetic compatibility (EMC). To ensure the device meets these requirements, it is recommended to follow the recommended layout and placement guidelines, use a shielded enclosure, and ensure that the device is properly filtered and shielded. Additionally, it is important to follow the recommended testing and certification procedures for EMI and EMC compliance.
