LTC3203BEDD-1#PBF - Analog Devices

Description: Switching Voltage Regulators 500mA Output Current Low Noise Dual Mode Charge Pumps

Download LTC3203BEDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

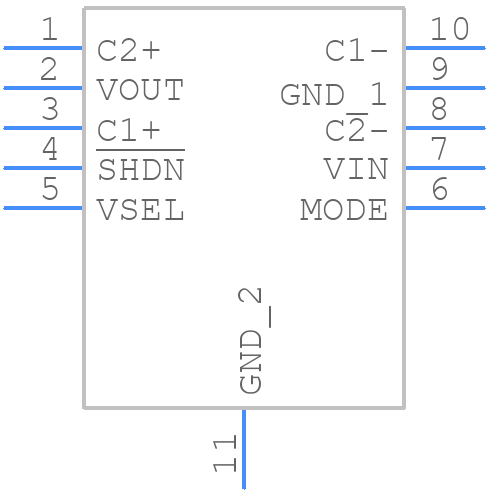

Symbol
LTC3203BEDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3203BEDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN
click to zoom
3D Models
LTC3203BEDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN
click to zoom

LTC3203BEDD-1#PBF Details

  • Manufacturer Part Number:

    LTC3203BEDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, M0-229WEED-2, DFN-10,

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    4.68 V

  • Output Voltage-Min:

    4.32 V

  • Output Voltage-Nom:

    4.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3203BEDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3203 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, avoid using long input and output traces, and keep the device away from noise sources.
  • The maximum input voltage that the LTC3203 can handle is 18V. Exceeding this voltage may damage the device. It's recommended to add input voltage protection, such as a voltage regulator or a TVS diode, to prevent overvoltage conditions.
  • The LTC3203 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management in high-temperature environments.
  • To troubleshoot issues with the LTC3203, start by checking the input and output voltages, and ensuring that the device is properly powered. Check for any signs of overheating, and verify that the device is properly soldered and connected. Use an oscilloscope to check for any unusual waveforms or noise on the input and output lines.
