LTC3203BEDD-1#TRPBF - Analog Devices

Description: Switching Voltage Regulators 500mA Output Current Low Noise Dual Mode Charge Pumps

Download LTC3203BEDD-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

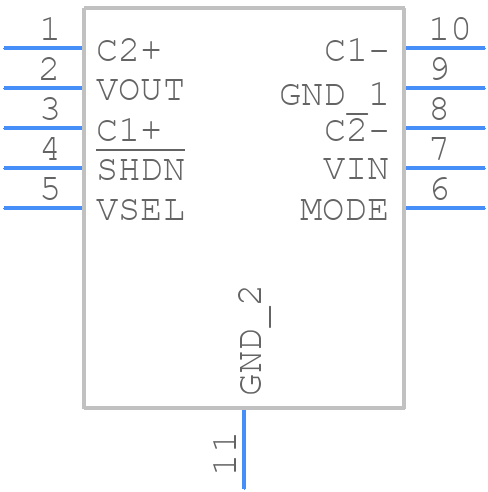

Symbol
LTC3203BEDD-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3203BEDD-1#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN
click to zoom
3D Models
LTC3203BEDD-1#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN
click to zoom

LTC3203BEDD-1#TRPBF Details

  • Manufacturer Part Number:

    LTC3203BEDD-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, M0-229WEED-2, DFN-10,

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    4.68 V

  • Output Voltage-Min:

    4.32 V

  • Output Voltage-Nom:

    4.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3203BEDD-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3203BEDD-1#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, the LTC3203BEDD-1#TRPBF requires a minimum output capacitance of 10uF, and the output voltage should be decoupled from the input voltage using a capacitor. Additionally, the device should be operated within its recommended operating conditions, and the input and output voltages should be within the specified ranges. It is also recommended to add a small resistor (e.g. 1 ohm) in series with the output capacitor to dampen any oscillations.
  • The maximum ambient temperature range for the LTC3203BEDD-1#TRPBF is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LTC3203BEDD-1#TRPBF is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and it is also suitable for use in high-reliability industrial and medical applications. However, it is recommended to consult with Analog Devices Inc. for specific requirements and qualifications.
  • To troubleshoot issues with the LTC3203BEDD-1#TRPBF, start by verifying that the device is properly powered and that the input and output voltages are within the specified ranges. Check for any signs of overheating, and ensure that the device is properly decoupled from the input and output. Use an oscilloscope to check for any oscillations or noise on the output, and consult the datasheet and application notes for troubleshooting guidelines.
