LTC3203EDD-1#PBF - Analog Devices

Description: Linear Technology LTC3203EDD-1#PBF, Charge Pump Step Up 500mA 1 MHz, 4.5 V, 10-Pin, DFN

Download LTC3203EDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

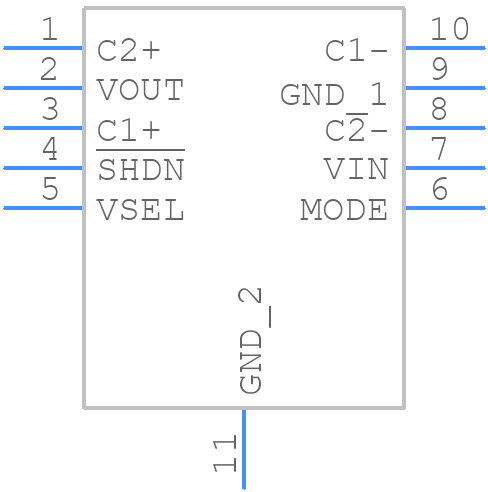

Symbol
LTC3203EDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3203EDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN
click to zoom
3D Models
LTC3203EDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN
click to zoom

LTC3203EDD-1#PBF Details

  • Manufacturer Part Number:

    LTC3203EDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, M0-229WEED-2, DFN-10,

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    4.68 V

  • Output Voltage-Min:

    4.32 V

  • Output Voltage-Nom:

    4.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3203EDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3203EDD-1#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC3203EDD-1#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the device after the input voltage has reached its nominal value.
  • The maximum input voltage that the LTC3203EDD-1#PBF can handle without damage is 6V. Exceeding this voltage may cause permanent damage to the device.
  • To troubleshoot issues with the LTC3203EDD-1#PBF, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly powered and that the input and output capacitors are properly sized. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The LTC3203EDD-1#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure good thermal design practices, such as providing adequate heat sinking and airflow, to prevent overheating.
