LTC3260IDE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3260IDE#PBF - CHARGE PUMP, INV, 32VIN, 500KHZ, 14DFN

Download LTC3260IDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

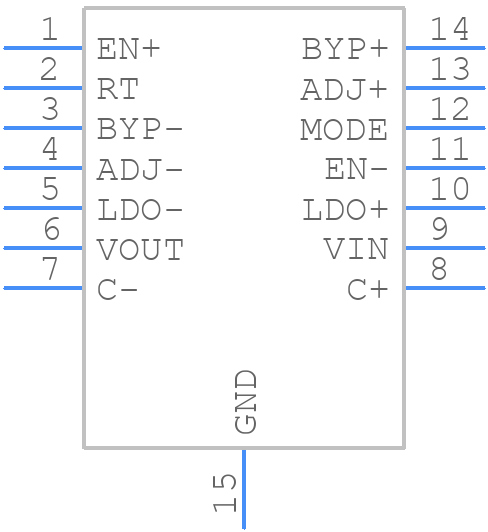

LTC3260IDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3260IDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 14-LEAD DE(DFN)
click to zoom
3D Models
LTC3260IDE#PBF - Analog Devices - 3D model - Small Outline No-lead - 14-LEAD DE(DFN)
click to zoom

LTC3260IDE#PBF Details

  • Manufacturer Part Number:

    LTC3260IDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1708

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3260IDE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3260IDE#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
  • The maximum input voltage that the LTC3260IDE#PBF can handle is 15V. Exceeding this voltage can cause damage to the IC.
  • The LTC3260IDE#PBF is rated for operation up to 125°C. However, it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LTC3260IDE#PBF, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Also, check the PCB layout and component values to ensure they match the recommended values.
