LTC3261EMSE#PBF - Analog Devices

Description: Linear Technology LTC3261EMSE#PBF, Charge Pump Inverting 100mA 550 kHz, -4.5 → -32 V, 12-pin, MSOP

Download LTC3261EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

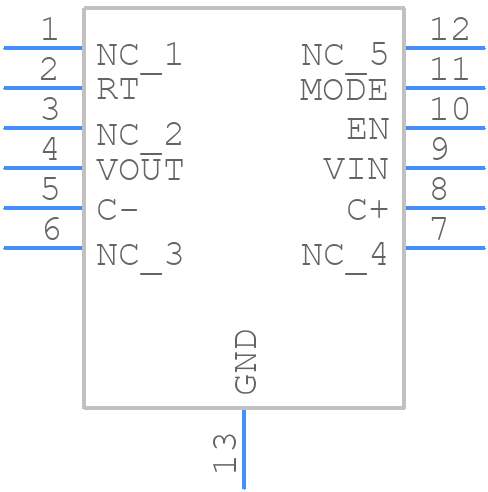

Symbol
LTC3261EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3261EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom
3D Models
LTC3261EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom

LTC3261EMSE#PBF Details

  • Manufacturer Part Number:

    LTC3261EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT -11.28V

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Nom:

    -12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    550 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3261EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3261EMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LTC3261EMSE in a high-temperature environment, ensure good thermal management by providing adequate heat sinking and airflow. Also, consider using a thermally conductive material for the PCB and ensure that the IC is not exposed to extreme temperatures.
  • The maximum input voltage that the LTC3261EMSE can handle is 18V. Exceeding this voltage may damage the IC.
  • Yes, the LTC3261EMSE is suitable for battery-powered applications due to its low quiescent current and high efficiency. However, ensure that the input voltage is within the recommended range and that the battery voltage does not exceed 18V.
  • To troubleshoot issues with the LTC3261EMSE, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Also, check for any signs of overheating or physical damage to the IC.
