LTC3265HDHC#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3265HDHC#PBF - DC/DC Adjustable Charge Pump Voltage Converter & Inverter, 4.5-32V in, 50 mA out, 500 kHz, DFN-18

Download LTC3265HDHC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

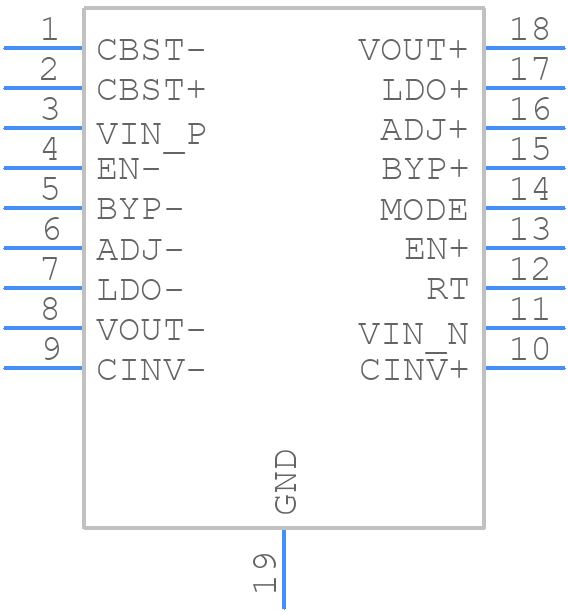

Symbol
LTC3265HDHC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3265HDHC#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 18-Lead Plastic DFN (5mm × 3mm)-1
click to zoom
3D Models
LTC3265HDHC#PBF - Analog Devices - 3D model - Small Outline No-lead - 18-Lead Plastic DFN (5mm × 3mm)-1
click to zoom

LTC3265HDHC#PBF Details

  • Manufacturer Part Number:

    LTC3265HDHC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1955

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO VOUT=20 VOLT

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-PDSO-N18

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    18.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3265HDHC#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the device.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The maximum output current that the LTC3265 can deliver is 500mA. However, it's recommended to keep the output current below 400mA for optimal performance and to prevent overheating.
  • The EN pin is an active-high enable pin. To enable the device, connect the EN pin to a logic high (VIN or higher). To disable the device, connect the EN pin to a logic low (GND).
  • The PG pin is a power good output that indicates when the output voltage is within regulation. It can be used to enable or disable downstream circuits. The PG pin is an open-drain output, so it requires an external pull-up resistor to a voltage rail.
