LTC3265IDHC#TRPBF - Analog Devices

Description: Switching Voltage Regulators Low Noise Dual Supply with Boost and Inverting Charge Pumps

Download LTC3265IDHC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

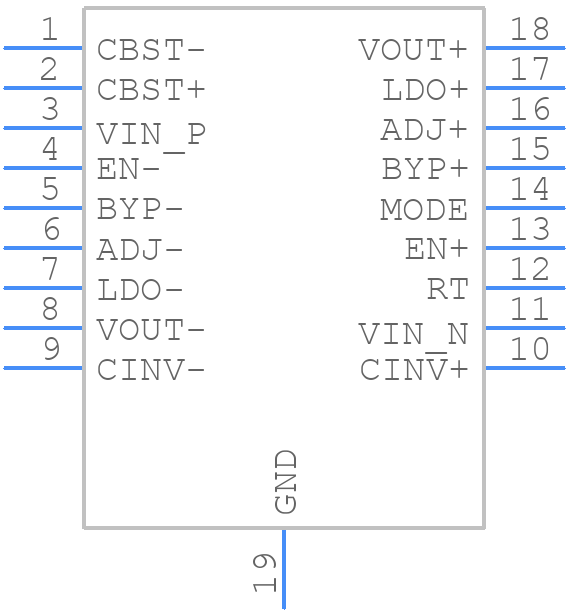

LTC3265IDHC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3265IDHC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 18-Lead Plastic DFN (5mm × 3mm)-2
click to zoom
3D Models
LTC3265IDHC#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 18-Lead Plastic DFN (5mm × 3mm)-2
click to zoom

LTC3265IDHC#TRPBF Details

  • Manufacturer Part Number:

    LTC3265IDHC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1955

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO VOUT=20 VOLT

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-PDSO-N18

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    18.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3265IDHC#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC3265IDHC can be found in the application note AN136, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The selection of input capacitors for the LTC3265IDHC depends on the input voltage, current, and frequency. A good starting point is to use low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The capacitance value should be chosen to ensure that the input ripple voltage is within the recommended range.
  • The maximum ambient temperature for the LTC3265IDHC is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure that the device is properly cooled and that the thermal management guidelines are followed to prevent overheating.
  • Yes, the LTC3265IDHC is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB, and that the PCB is designed to withstand the vibration levels. Additionally, the device should be tested and validated for the specific vibration environment.
  • Troubleshooting issues with the LTC3265IDHC can be challenging, but a good starting point is to review the application note AN136, which provides guidelines for troubleshooting common issues such as output voltage errors, oscillations, and thermal shutdown. Additionally, it's essential to use the right tools, such as an oscilloscope and a thermal camera, to diagnose and debug the issue.
