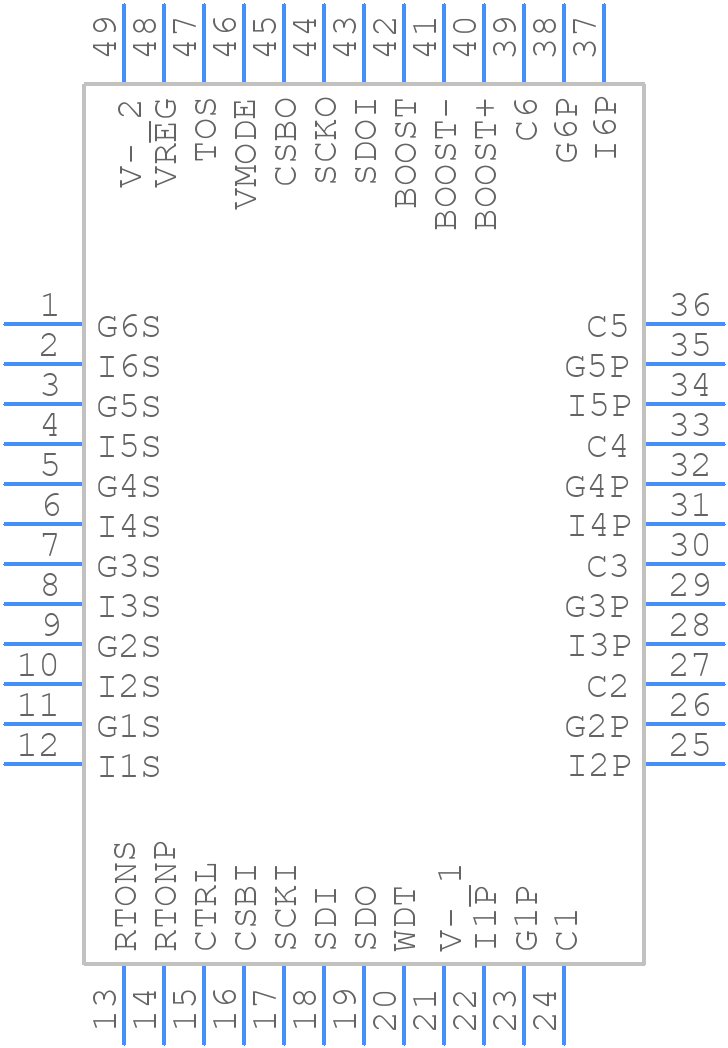

LTC3300HUK-1#PBF - Analog Devices

LTC3300HUK-1#PBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A good PCB layout for the LTC3300HUK-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
• How do I select the right input and output capacitors?
  The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, and the output capacitor should be a low-ESR ceramic capacitor with a value between 22uF to 47uF. The capacitor selection also depends on the specific application requirements, such as ripple current, voltage rating, and temperature range.
• What is the maximum ambient temperature for reliable operation?
  The LTC3300HUK-1#PBF is rated for operation up to 125°C ambient temperature, but the maximum ambient temperature for reliable operation depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation at higher ambient temperatures to ensure reliable operation.
• How do I ensure the device is properly thermally managed?
  Proper thermal management involves providing a good thermal path from the device to a heat sink or a metal plate, using thermal interface materials such as thermal tape or thermal grease, and ensuring good airflow around the device. The device's thermal pad should be soldered to a copper plane on the PCB to provide a good thermal path.
• What are the potential failure modes and how can I mitigate them?
  Potential failure modes for the LTC3300HUK-1#PBF include overvoltage, undervoltage, overcurrent, and overheating. These can be mitigated by using input and output voltage protection circuits, current limiting resistors, and thermal protection circuits. Additionally, ensuring proper PCB layout, component selection, and thermal management can also help prevent failures.
