LTC3309AJV#TRMPBF - Analog Devices

Description: 5V, 6A Synchronous Step-Down Silent Switcher in 2mm ? 2mm LQFN

Download LTC3309AJV#TRMPBF Model

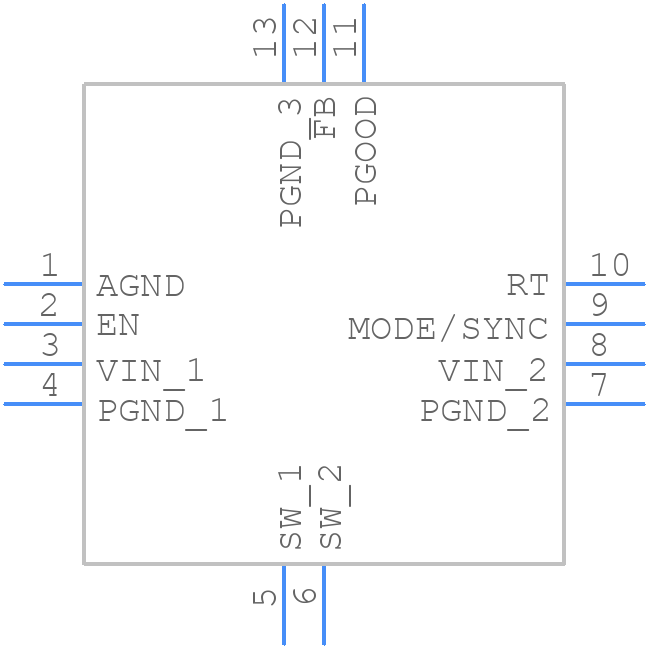

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3309AJV#TRMPBF - Analog Devices PCB footprint - Other - Other - LTC3309AJV#TRMPBF-1
click to zoom
3D Models
LTC3309AJV#TRMPBF - Analog Devices  - 3D model - Other - LTC3309AJV#TRMPBF-1
click to zoom

LTC3309AJV#TRMPBF Details

  • Manufacturer Part Number:

    LTC3309AJV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    VOUT RANGE: 0.5V TO 5.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10.1 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3309AJV#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3309AJV involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is within the recommended range (10uF to 100uF), and the ESR (Equivalent Series Resistance) is within the recommended range (0.01Ω to 1Ω). Also, ensure the input voltage is within the recommended range and the output current is within the maximum rating.
  • The maximum ambient temperature for the LTC3309AJV is 85°C. However, the junction temperature (TJ) should not exceed 125°C. It's essential to ensure proper thermal management to prevent overheating.
  • Yes, the LTC3309AJV is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified for automotive and industrial applications. However, it's essential to follow proper design and manufacturing guidelines to ensure the required level of reliability.
  • To troubleshoot issues with the LTC3309AJV, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are within the recommended range and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.
