LTC3336EV#TRMPBF - Analog Devices

Description: Buck Switching Regulator IC Positive Programmable 1.2V 1 Output 250mA 12-VFQFN Exposed Pad

Download LTC3336EV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

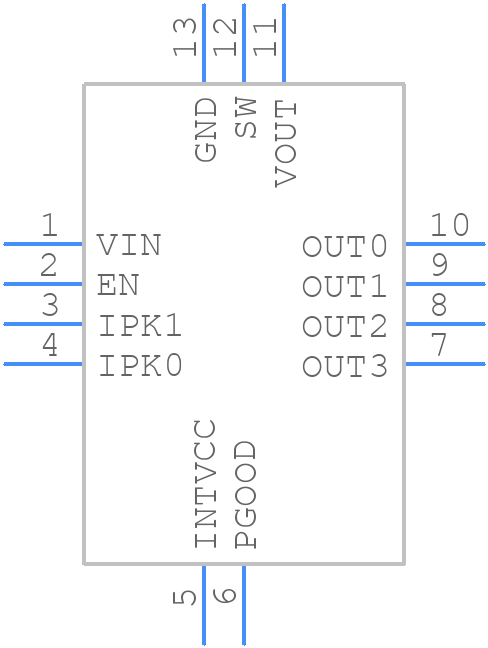

Symbol
LTC3336EV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3336EV#TRMPBF - Analog Devices PCB footprint - Other - Other - LTC3336EV#TRMPBF
click to zoom
3D Models
LTC3336EV#TRMPBF - Analog Devices - 3D model - Other - LTC3336EV#TRMPBF
click to zoom

LTC3336EV#TRMPBF Details

  • Manufacturer Part Number:

    LTC3336EV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    7.2 V

  • JESD-30 Code:

    S-PQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.39 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3336EV#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3336 is 36V, but it's recommended to keep it below 34V to ensure reliable operation.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW pin) away from sensitive nodes.
  • The recommended inductor value is between 1.5uH to 3.3uH, and it's recommended to use a shielded inductor with a high saturation current rating (e.g., >5A) to minimize core losses and ensure reliable operation.
  • Select output capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A minimum of 10uF to 22uF ceramic or polymer capacitors are recommended, and it's recommended to use multiple capacitors in parallel to reduce the overall ESR.
  • The maximum ambient temperature range for the LTC3336 is -40°C to 125°C, but it's recommended to derate the device's performance at high temperatures to ensure reliable operation.
