LTC3337ERC#TRMPBF - Analog Devices

Description: Primary Battery SOH Monitor with Precision Coulomb Counter

Download LTC3337ERC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

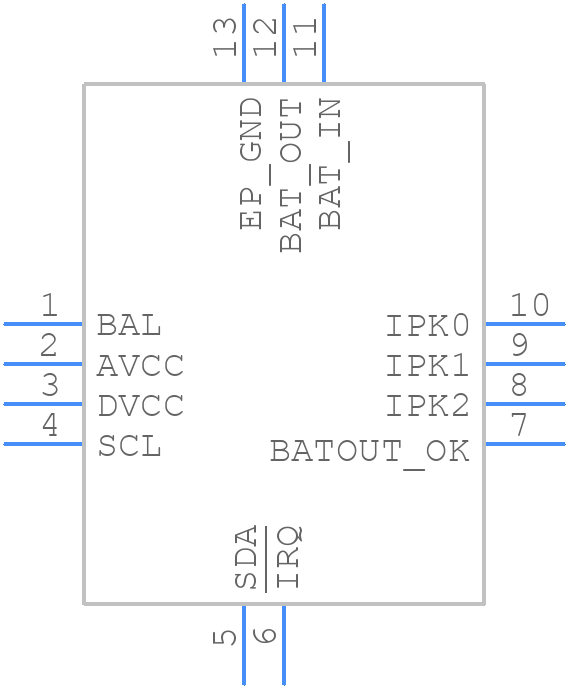

LTC3337ERC#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3337ERC#TRMPBF - Analog Devices PCB footprint - Other - Other - RC Package 12-Lead Plastic LFCSP (2mm × 2mm)
click to zoom
3D Models
LTC3337ERC#TRMPBF - Analog Devices - 3D model - Other - RC Package 12-Lead Plastic LFCSP (2mm × 2mm)
click to zoom

LTC3337ERC#TRMPBF Details

  • Manufacturer Part Number:

    LTC3337ERC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1784

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,0.8SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3337ERC#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal components.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW pin) away from sensitive analog nodes.
  • The recommended inductor value is between 1.5uH to 3.3uH, and a shielded inductor with a low DCR (e.g., 0.5 ohms or less) is recommended. The inductor type should be a high-current, low-loss inductor with a high saturation current rating.
  • The output voltage can be adjusted by changing the resistor divider ratio between the FB pin and the output voltage. The feedback pin (FB) should be connected to a resistive divider network that sets the desired output voltage.
  • The maximum output current that the LTC3337ERC#TRMPBF can deliver is 2A, but it's recommended to keep the output current below 1.5A for optimal performance and to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3337ERC#TRMPBF Overview

Use the download button to access the LTC3337ERC#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC33, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
