LTC3350EUHF#TRPBF - Analog Devices

Description: High Current Supercapacitor Backup Controller and System Monitor

Download LTC3350EUHF#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

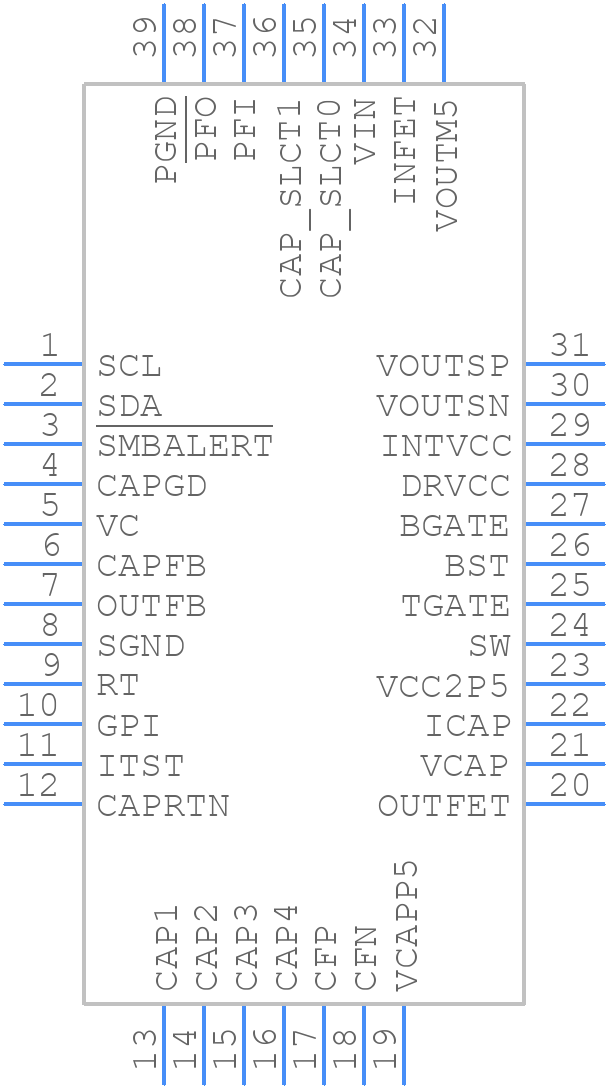

LTC3350EUHF#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3350EUHF#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)_2024
click to zoom
3D Models
LTC3350EUHF#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)_2024
click to zoom

LTC3350EUHF#TRPBF Details

  • Manufacturer Part Number:

    LTC3350EUHF#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY BACKUP SUPERVISOR

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC3350EUHF#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3350EUHF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LTC3350EUHF, ensure that the input and output capacitors are of high quality and have low ESR, keep the input voltage within the recommended range, and minimize the noise on the input and output lines. Additionally, ensure that the PCB layout is optimized for low noise and good thermal performance.
  • The LTC3350EUHF can operate in ambient temperatures up to 125°C, but the maximum junction temperature is 150°C. It's essential to ensure that the device is properly cooled to prevent overheating.
  • Yes, the LTC3350EUHF is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC3350EUHF, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and of high quality. Check for noise on the input and output lines, and ensure that the PCB layout is optimized for low noise and good thermal performance. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3350EUHF#TRPBF Overview

Use the download button to access the LTC3350EUHF#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC33, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
