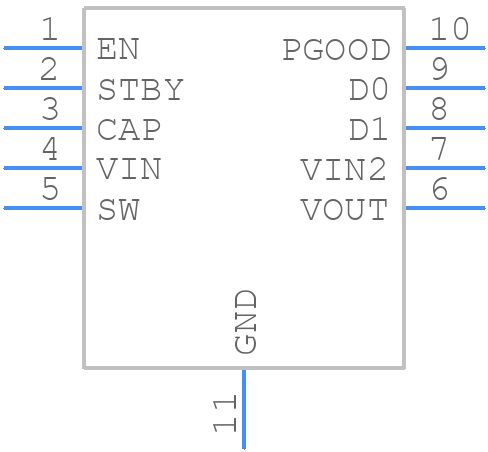

LTC3388EDD-1#PBF - Analog Devices

LTC3388EDD-1#PBF Details

• Manufacturer Part Number:

  LTC3388EDD-1#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  05-08-1699

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO AVAILABLE 1.5, 1.8 AND 2.5V OUTPUT

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  HYSTERETIC CURRENT MODE

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  5.5 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Output Current-Max:

  0.21 A

• Output Voltage-Max:

  1.26 V

• Output Voltage-Min:

  1.14 V

• Output Voltage-Nom:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
