LTC3410ESC6#TRPBF - Analog Devices

Description: 2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

Download LTC3410ESC6#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

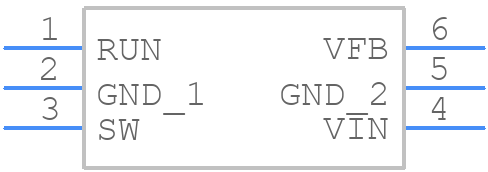

Symbol
LTC3410ESC6#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3410ESC6#TRPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SC6
click to zoom
3D Models
LTC3410ESC6#TRPBF - Analog Devices - 3D model - SOT23 (6-Pin) - SC6
click to zoom

LTC3410ESC6#TRPBF Details

  • Manufacturer Part Number:

    LTC3410ESC6#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1638

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.63 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

LTC3410ESC6#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The maximum output current that can be drawn from the LTC3410 is 1.5A, but it's recommended to keep it below 1.2A for optimal performance and reliability.
  • The soft-start feature of the LTC3410 can be configured by connecting a capacitor from the SS pin to GND. The value of the capacitor determines the soft-start time, with larger values resulting in longer start-up times.
  • The PG (Power Good) pin is an open-drain output that indicates when the output voltage is within regulation. It can be used to reset a microcontroller or other devices when the output voltage is stable. Connect a pull-up resistor to a voltage source, and then connect the PG pin to the reset pin of the microcontroller.
