LTC3412AIFE#TRPBF - Analog Devices

LTC3412AIFE#TRPBF Details

• Manufacturer Part Number:

  LTC3412AIFE#TRPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

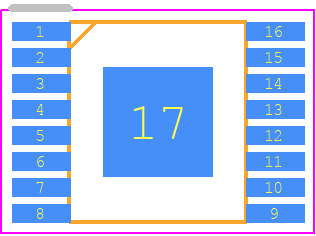

• Package Description:

  TSSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  05-08-1663 (BA)

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  BURST MODE

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.25 V

• Input Voltage-Nom:

  3.3 V

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  6 A

• Output Voltage-Max:

  5 V

• Output Voltage-Min:

  0.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Supply Current-Max (Isup):

  0.33 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  4000 kHz

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
