LTC3429ES6#TRMPBF - Analog Devices

Description: LTC3429ES6#TRMPBF, Boost Converter, Step Up 0.6A Adjustable, 2.5 → 4.3 V, 620 kHz, 6-Pin TSOT-23

Download LTC3429ES6#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

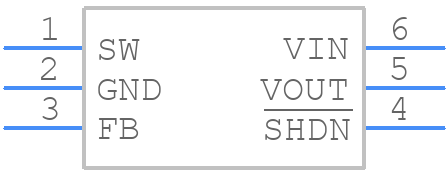

Symbol
LTC3429ES6#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3429ES6#TRMPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Lead Plastic TSOT-2
click to zoom
3D Models
LTC3429ES6#TRMPBF - Analog Devices - 3D model - SOT23 (6-Pin) - 6-Lead Plastic TSOT-2
click to zoom

LTC3429ES6#TRMPBF Details

  • Manufacturer Part Number:

    LTC3429ES6#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MO-193, TSOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.4 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    4.3 V

  • Output Voltage-Min:

    2.5 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    620 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC3429ES6#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3429ES6 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LTC3429ES6, ensure that the input voltage is within the recommended range, use high-quality capacitors with low ESR, and minimize the noise on the input and output lines. Additionally, ensure that the PCB layout is optimized for low noise and good thermal dissipation.
  • The maximum ambient temperature for the LTC3429ES6 is 85°C. However, the device can operate at higher temperatures with derating. It's essential to ensure that the device is properly cooled and that the thermal dissipation is adequate to prevent overheating.
  • Yes, the LTC3429ES6 is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC3429ES6, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Use an oscilloscope to check for noise and oscillations on the input and output lines. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3429ES6#TRMPBF Overview

Use the download button to access the LTC3429ES6#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC34, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
