LTC3490ES8#TRPBF - Analog Devices

Description: LED Lighting Drivers Single Cell 350mA, 1.3MHz Synch LED Driver

Download LTC3490ES8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

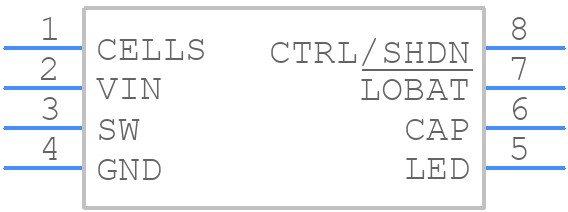

LTC3490ES8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3490ES8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LTC3490ES8#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LTC3490ES8#TRPBF Details

  • Manufacturer Part Number:

    LTC3490ES8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Max:

    3.2 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC3490ES8#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal regulator.
  • The LTC3490ES8#TRPBF is rated to operate from -40°C to 125°C. Ensure proper thermal design, including heat sinking and airflow, to keep the device within this range. Also, consider the thermal resistance of the package and PCB.
  • Follow the recommended layout and routing guidelines in the datasheet, including keeping the input and output capacitors close to the device, using short and wide traces, and avoiding vias under the device. Also, consider using a solid ground plane and a separate power plane for the input voltage.
  • Start by verifying the input voltage, output load, and ambient temperature are within the specified ranges. Check the PCB layout and routing for any errors or omissions. Use an oscilloscope to monitor the output voltage and input current. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The LTC3490ES8#TRPBF is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device operates within the specified parameters. Consult the datasheet and relevant industry standards (e.g., IEC 61508, MIL-STD-883) for guidance on using the device in safety-critical applications.
