LTC3521IFE#PBF - Analog Devices

Description: Switching Voltage Regulators 1A Buck-Boost and Dual 600mA Buck Synchronous DC/DC Converters

Download LTC3521IFE#PBF Model

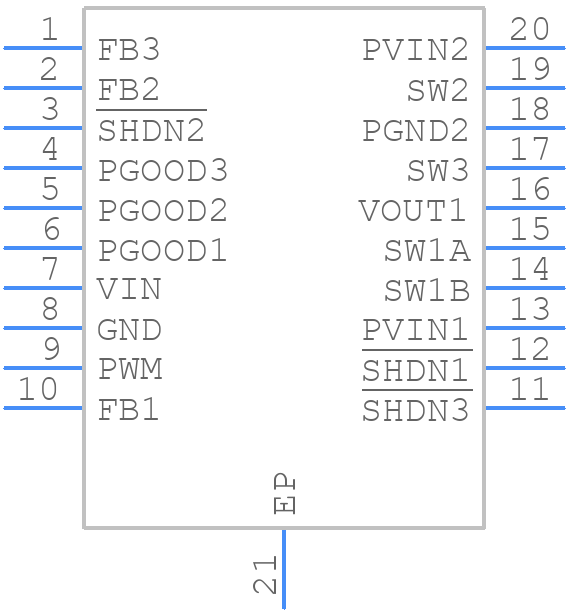

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3521IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663) CB
click to zoom
3D Models
LTC3521IFE#PBF - Analog Devices  - 3D model - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663) CB
click to zoom

LTC3521IFE#PBF Details

  • Manufacturer Part Number:

    LTC3521IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.8 TO 5.25 V; ALSO OPERATES IN CURRENT MODE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1350 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3521IFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3521IFE is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To optimize the inductor selection, consider the following factors: inductance value, DC resistance, core material, and saturation current. A good starting point is to use an inductor with an inductance value between 1uH to 10uH, and a DC resistance less than 100mΩ.
  • To minimize EMI and noise, follow these PCB layout guidelines: keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-frequency switching nodes (e.g., LX pin) away from sensitive analog nodes. Also, use a shielded inductor and orient it to minimize radiation.
  • To configure the LTC3521IFE for a specific output voltage, use the FB pin and an external resistor divider network to set the output voltage. The FB pin voltage is 0.8V, so choose resistors that divide the output voltage to 0.8V. For example, for a 5V output, use a 2.2kΩ resistor from VOUT to FB and a 1.2kΩ resistor from FB to GND.
  • The maximum output current that the LTC3521IFE can deliver is 1.5A, but it's limited by the input voltage, inductor selection, and thermal considerations. Be sure to check the thermal performance and adjust the output current accordingly to avoid overheating.
