LTC3526EDC#TRMPBF - Analog Devices

Description: Delivers 3.3V at 100mA from a Single Alkaline/ NiMH Cell or 3.3V at 200mA from Two Cells n VIN Start-Up Voltage: 850mV n 1.6V to 5.25V VOUT Range n Up to 94% Efficiency n Output Disconnect n 1MHz Fixed Frequency Operation n VIN > VOUT Operation n Integrated Soft-Star

Download LTC3526EDC#TRMPBF Model

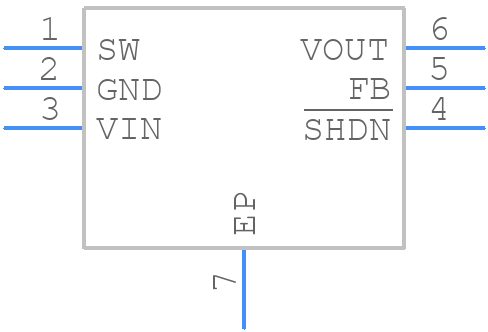

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3526EDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC6 Package 6-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1703 Rev C)
click to zoom
3D Models
LTC3526EDC#TRMPBF - Analog Devices  - 3D model - Small Outline No-lead - DC6 Package 6-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1703 Rev C)
click to zoom

LTC3526EDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC3526EDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    2 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WCCD-2, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1703

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.6V TO 5.25V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Min:

    1 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1300 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3526EDC#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3526EDC is 18V, but it's recommended to keep it below 15V for optimal performance and to prevent damage to the internal components.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW) away from sensitive analog nodes.
  • The recommended inductor value for the LTC3526EDC is between 1.5uH to 3.3uH, and it's recommended to use a shielded inductor with a high saturation current rating. The inductor type should be a low-loss, high-frequency inductor such as a ferrite or iron powder core inductor.
  • The output voltage of the LTC3526EDC can be adjusted by changing the resistive divider ratio of the feedback resistors (RFBT and RFBG). The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + RFBT/RFBG).
  • The maximum output current that the LTC3526EDC can deliver is 2A, but it's recommended to keep it below 1.5A for optimal performance and to prevent overheating.
