LTC3526LEDC-2#TRPBF - Analog Devices

Description: IC REG BOOST ADJ 550MA 6DFN 550mA 2MHz Synchronous Step-Up DC/DC Converters in 2mm × 2mm DFN

Download LTC3526LEDC-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

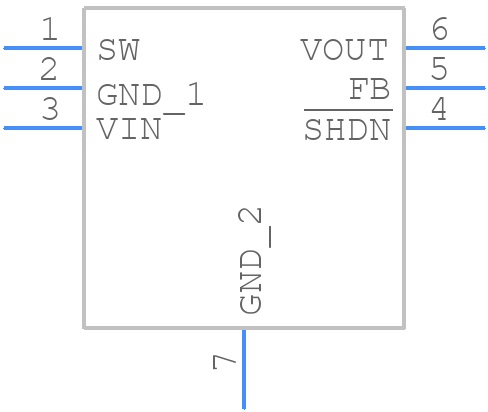

LTC3526LEDC-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3526LEDC-2#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1703 Rev B)
click to zoom
3D Models
LTC3526LEDC-2#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1703 Rev B)
click to zoom

LTC3526LEDC-2#TRPBF Details

  • Manufacturer Part Number:

    LTC3526LEDC-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WCCD-2, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1703

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.5V TO 5.25V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.55 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3526LEDC-2#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal components.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value. A 10uF to 22uF ceramic capacitor is recommended. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The EN (Enable) pin is used to turn the regulator on or off. When the EN pin is high (above 1.4V), the regulator is enabled, and when it's low (below 0.4V), the regulator is disabled. You can use the EN pin to control the power-on sequence or to implement a power-saving feature in your design.
  • The LTC3526LEDC-2#TRPBF is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases. Consult the datasheet for the thermal derating curves and ensure that your design meets the recommended operating conditions.
  • The output voltage of the LTC3526LEDC-2#TRPBF is adjustable and can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB (Feedback) pin. Consult the datasheet for the recommended resistor values and calculation examples.
