LTC3542ES6#TRMPBF - Analog Devices

Description: Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 0.5A Automotive 6-Pin TSOT-23

Download LTC3542ES6#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

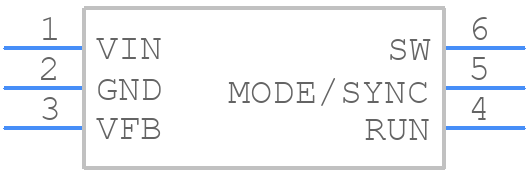

LTC3542ES6#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3542ES6#TRMPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - LTC3542ES6#TRMPBF
click to zoom
3D Models
LTC3542ES6#TRMPBF - Analog Devices - 3D model - SOT23 (6-Pin) - LTC3542ES6#TRMPBF
click to zoom

LTC3542ES6#TRMPBF Details

  • Manufacturer Part Number:

    LTC3542ES6#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MO-193, TSOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.625 mm

LTC3542ES6#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3542ES6#TRMPBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure the device operates within the specified temperature range, make sure to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. Also, consider using thermal interface materials and heat sinks with a high thermal conductivity.
  • Exceeding the maximum input voltage can cause permanent damage to the device, including latch-up, overheating, and electrical overstress. It can also lead to a reduction in the device's lifespan and reliability. Always ensure the input voltage is within the specified range to prevent damage.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure the input voltage is within the specified range, the output load is within the recommended range, and the feedback resistors are correctly selected. Also, verify that the device is properly configured and the output voltage is set correctly.
  • To minimize EMI and RFI when using the LTC3542ES6#TRMPBF, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters or ferrite beads on the input and output lines. Also, ensure the PCB layout is optimized for EMI reduction, and consider using a common-mode choke or a pi-filter.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3542ES6#TRMPBF Overview

Use the download button to access the LTC3542ES6#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC35, or try a keyword search, such as Switching Regulator or Controllers
