LTC3550EDHC#PBF - Analog Devices

Description: Battery Management Dual Input USB/AC Adapter Li-Ion Battery Charger w/ 600mA Buck Converter

Download LTC3550EDHC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

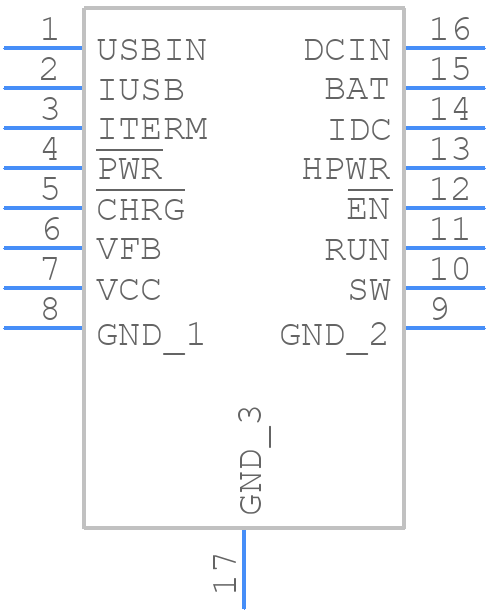

Symbol
LTC3550EDHC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3550EDHC#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LTC3550EDHC#PBF
click to zoom
3D Models
LTC3550EDHC#PBF - Analog Devices - 3D model - Small Outline No-lead - LTC3550EDHC#PBF
click to zoom

LTC3550EDHC#PBF Details

  • Manufacturer Part Number:

    LTC3550EDHC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1706

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3550EDHC#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC3550EDHC can be found in the application note AN113, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The LTC3550EDHC has a programmable charging profile, and the optimal profile depends on the specific battery type and chemistry. Refer to the battery manufacturer's recommendations and the LTC3550EDHC's application note AN114 for guidance on creating a custom charging profile.
  • The LTC3550EDHC is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal management. Refer to the datasheet and application notes for thermal management guidelines.
  • The LTC3550EDHC is designed to work with standard Li-Ion/Li-Polymer batteries, but it can be adapted for use with other chemistries with proper configuration and programming. Consult with Analog Devices' support team or a qualified engineer for guidance on customizing the charger for non-standard battery chemistries.
  • To ensure safe and reliable charging, follow the guidelines in the datasheet and application notes, and implement proper thermal management, overcharge protection, and fault detection mechanisms. Additionally, ensure that the charger is designed and tested to meet relevant safety standards and regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3550EDHC#PBF Overview

Use the download button to access the LTC3550EDHC#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC35, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
