LTC3586EUFE-2#PBF - Analog Devices

Description: Battery Management High Efficiency USB Power Manager + Dual Buck + Boost + Buck/Boost DC/DC

Download LTC3586EUFE-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

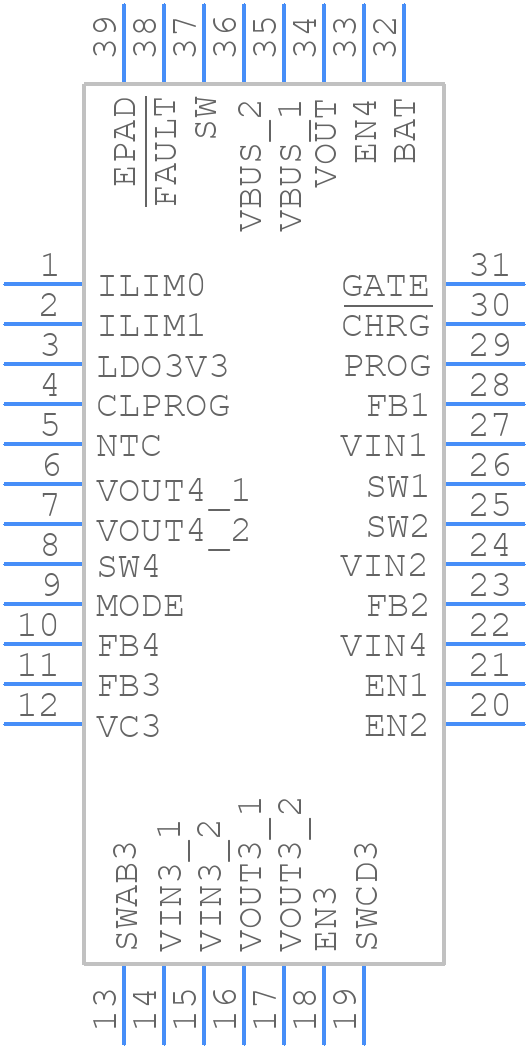

Symbol
LTC3586EUFE-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3586EUFE-2#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN38
click to zoom
3D Models
LTC3586EUFE-2#PBF - Analog Devices - 3D model - Quad Flat No-Lead - QFN38
click to zoom

LTC3586EUFE-2#PBF Details

  • Manufacturer Part Number:

    LTC3586EUFE-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1750

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.16X.24,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC3586EUFE-2#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC3586EUFE-2#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The selection of input and output capacitors for the LTC3586EUFE-2#PBF depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor type can be ceramic, tantalum, or electrolytic, but ceramic capacitors are recommended for their low ESR and high reliability.
  • The maximum ambient temperature range for the LTC3586EUFE-2#PBF is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's recommended to consult the datasheet for the thermal derating curve to ensure reliable operation.
  • To ensure the LTC3586EUFE-2#PBF is properly powered up and powered down, it's recommended to follow a controlled power-up sequence. The EN pin should be pulled high after the input voltage has reached its nominal value, and the device should be powered down by pulling the EN pin low before removing the input voltage.
  • The recommended input voltage range for the LTC3586EUFE-2#PBF is 2.5V to 5.5V. However, the device can operate with an input voltage as low as 2.2V, but with reduced performance and efficiency.
