LTC3588EMSE-2#PBF - Analog Devices

Description: Piezoelectric Energy Harvesting Power Supply 10-Pin MSOP EP Tube

Download LTC3588EMSE-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

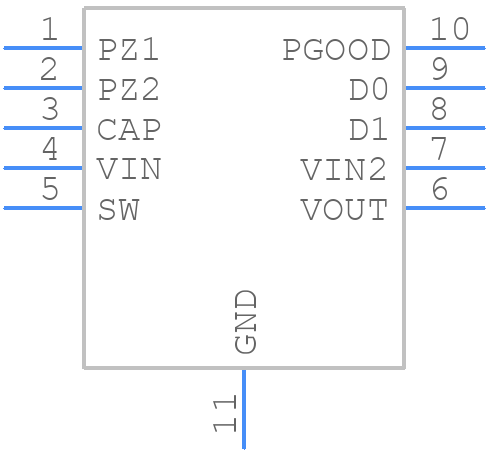

Symbol
LTC3588EMSE-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3588EMSE-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP, Exposed Die Pad_2020
click to zoom
3D Models
LTC3588EMSE-2#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP, Exposed Die Pad_2020
click to zoom

LTC3588EMSE-2#PBF Details

  • Manufacturer Part Number:

    LTC3588EMSE-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3588EMSE-2#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC3588EMSE-2#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-frequency noise sources and to use shielding or guard rings to reduce EMI.
  • To optimize the performance of the LTC3588EMSE-2#PBF, it is recommended to select the optimal input and output capacitors, adjust the feedback resistors to achieve the desired output voltage, and optimize the inductor selection to minimize losses. Additionally, it is recommended to use a low-ESR output capacitor and to minimize the output voltage ripple.
  • The LTC3588EMSE-2#PBF has a maximum junction temperature of 125°C. To ensure reliable operation over temperature, it is recommended to provide adequate heat sinking, use a thermal interface material, and ensure good airflow around the device. Additionally, it is recommended to derate the output current and input voltage to prevent overheating.
  • To troubleshoot common issues with the LTC3588EMSE-2#PBF, it is recommended to check the input and output voltage levels, verify the feedback loop is stable, and ensure the device is properly soldered and connected. Additionally, it is recommended to check for excessive current draw, verify the inductor selection, and ensure the device is operating within its recommended specifications.
