LTC3600EDD#TRPBF - Analog Devices

Description: Switching Voltage Regulators 15V, 1.5A Synchronous Step-Down Regulator with Programmable Reference

Download LTC3600EDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

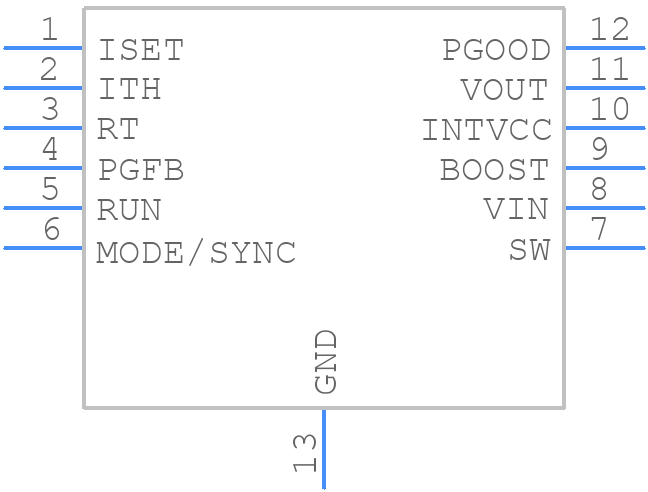

Symbol
LTC3600EDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3600EDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)_-
click to zoom
3D Models
LTC3600EDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)_-
click to zoom

LTC3600EDD#TRPBF Details

  • Manufacturer Part Number:

    LTC3600EDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    14.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1.06 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3600EDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3600EDD involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane is recommended.
  • To optimize the performance of the LTC3600EDD in a high-temperature environment, ensure good thermal management by providing adequate airflow, using a heat sink if necessary, and following proper PCB layout guidelines. Also, consider using a thermally-enhanced package option.
  • The maximum input voltage that the LTC3600EDD can handle is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 12V for optimal performance and reliability.
  • Yes, the LTC3600EDD is suitable for battery-powered applications due to its low quiescent current and high efficiency. However, ensure that the input voltage is within the specified range and that the battery voltage is properly regulated.
  • To troubleshoot issues with the LTC3600EDD, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly sized and that the PCB layout is correct. Consult the datasheet and application notes for guidance on troubleshooting common issues.
