LTC3605AEUF#TRPBF - Analog Devices

Description: 20V, 5A Synchronous Step-Down Regulator

Download LTC3605AEUF#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

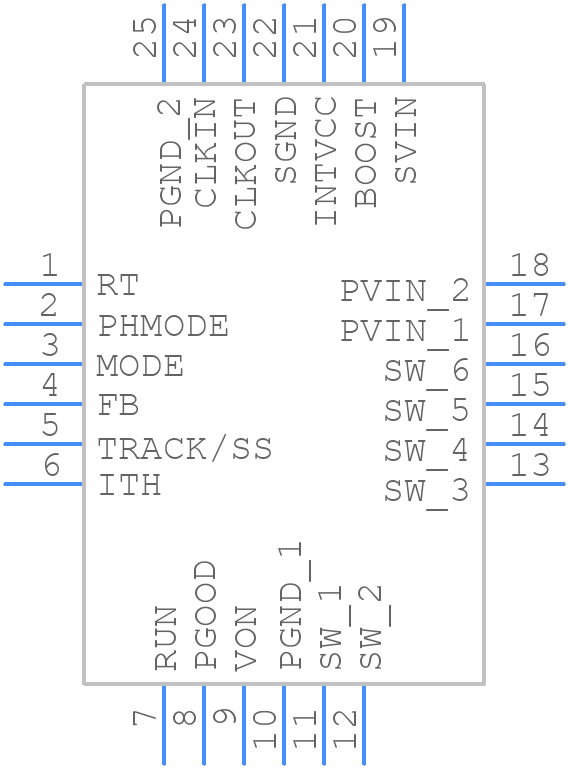

Symbol
LTC3605AEUF#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3605AEUF#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1697 Rev B)
click to zoom
3D Models
LTC3605AEUF#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1697 Rev B)
click to zoom

LTC3605AEUF#TRPBF Details

  • Manufacturer Part Number:

    LTC3605AEUF#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, LEAD FREE, PLASTIC, MO-220WGGD-X, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1697

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC3605AEUF#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3605AEUF#TRPBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the device operates within the specified temperature range, make sure to provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid blocking airflow around the device. Additionally, consider using a thermal interface material between the device and the heat sink.
  • The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation.
  • To optimize the output capacitor selection, consider the output voltage ripple, output current, and output capacitor ESR. A general rule of thumb is to use a low-ESR ceramic capacitor with a value of 10uF to 22uF. However, the optimal value may vary depending on the specific application requirements.
  • The maximum allowed input voltage ripple for the LTC3605AEUF#TRPBF is 10% of the input voltage. Exceeding this limit may affect the device's performance and stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3605AEUF#TRPBF Overview

Use the download button to access the LTC3605AEUF#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
