LTC3612IFE#PBF - Analog Devices

Description: Switching Voltage Regulators 3A, 4MHz, Monolithic Synchronous Step-Down Regulator

Download LTC3612IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

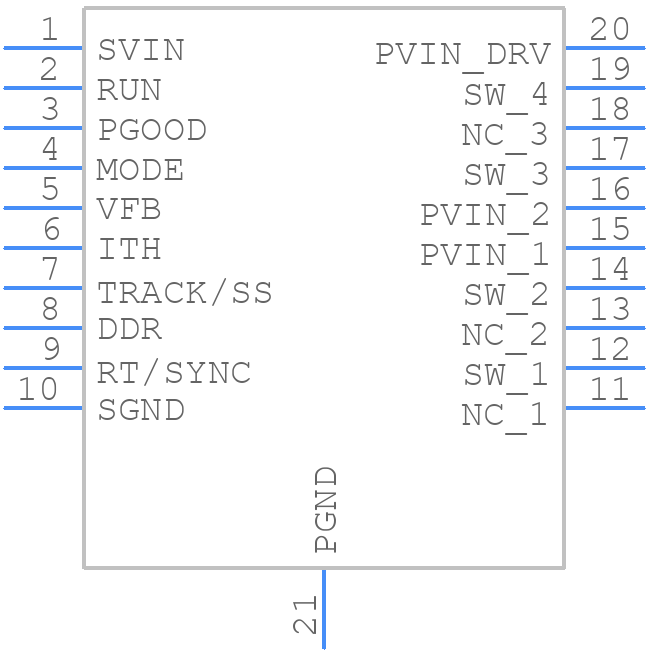

LTC3612IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3612IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3612IFE#PBF - Analog Devices - 3D model - Small Outline Packages - 20-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3612IFE#PBF Details

  • Manufacturer Part Number:

    LTC3612IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO AVAILABLE OUTPUT VOLTAGE DOWN TO 0.6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC3612IFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To minimize EMI, it's recommended to keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-frequency switching nodes (e.g., LX) away from sensitive analog nodes. Additionally, use a shielded inductor and orient it to minimize radiation.
  • The recommended operating temperature range for the LTC3612IFE#PBF is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
  • Yes, the LTC3612IFE#PBF is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing guidelines to ensure the required level of reliability.
  • To troubleshoot issues with the LTC3612IFE#PBF, start by verifying the input voltage, output voltage, and current. Check for proper component selection, PCB layout, and thermal design. Use an oscilloscope to observe the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
