LTC3612MPUDC#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3612MPUDC#PBF - DC-DC Switching Buck Step Down Regulator, Adjustable, 2.25V-5.5Vin, 600mV-5.5Vout, 3Aout, QFN-20

Download LTC3612MPUDC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

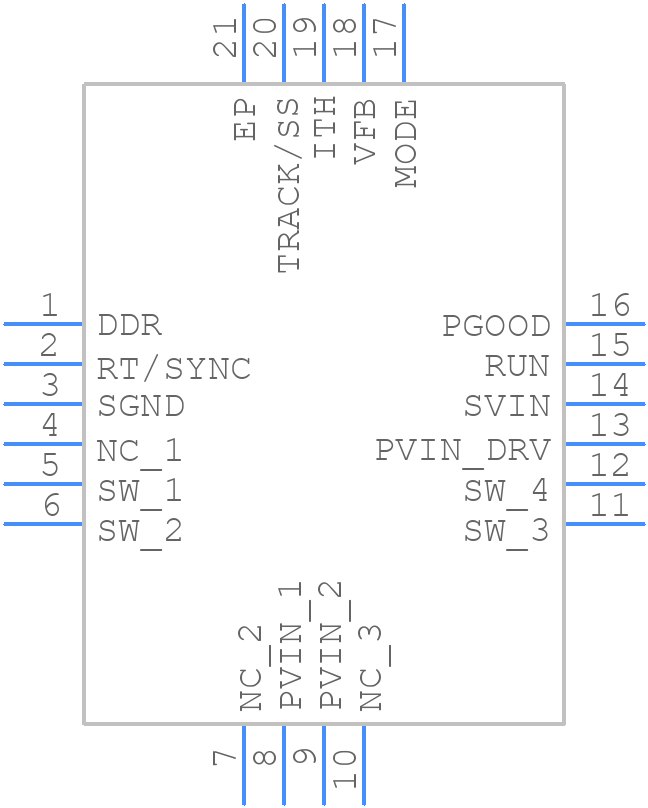

Symbol
LTC3612MPUDC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3612MPUDC#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UDC Package 20-Lead Plastic QFN (3mm × 4mm) (Reference LTC DWG # 05-08-1742 Rev Ø)
click to zoom
3D Models
LTC3612MPUDC#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UDC Package 20-Lead Plastic QFN (3mm × 4mm) (Reference LTC DWG # 05-08-1742 Rev Ø)
click to zoom

LTC3612MPUDC#PBF Details

  • Manufacturer Part Number:

    LTC3612MPUDC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1742

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE DOWN TO 0.6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC3612MPUDC#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3612MPUDC involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. The output capacitor should have a low ESR and be rated for the maximum output voltage. A minimum capacitance of 10uF is recommended for both input and output capacitors. X5R or X7R ceramic capacitors are good options.
  • The maximum ambient temperature for the LTC3612MPUDC is 85°C. However, the junction temperature should not exceed 125°C. The device should be derated for temperatures above 70°C.
  • Yes, the LTC3612MPUDC is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow proper design and manufacturing practices to ensure the reliability of the overall system.
  • To troubleshoot issues with the LTC3612MPUDC, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for more troubleshooting tips.
