LTC3615MPFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3615MPFE#PBF - DC/DC Switching Regulator, Synchronous, 2 Output, 2.25 V - 5.5 V in, 5.5V/3 A out, 4 MHz, TSSOP-24

Download LTC3615MPFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

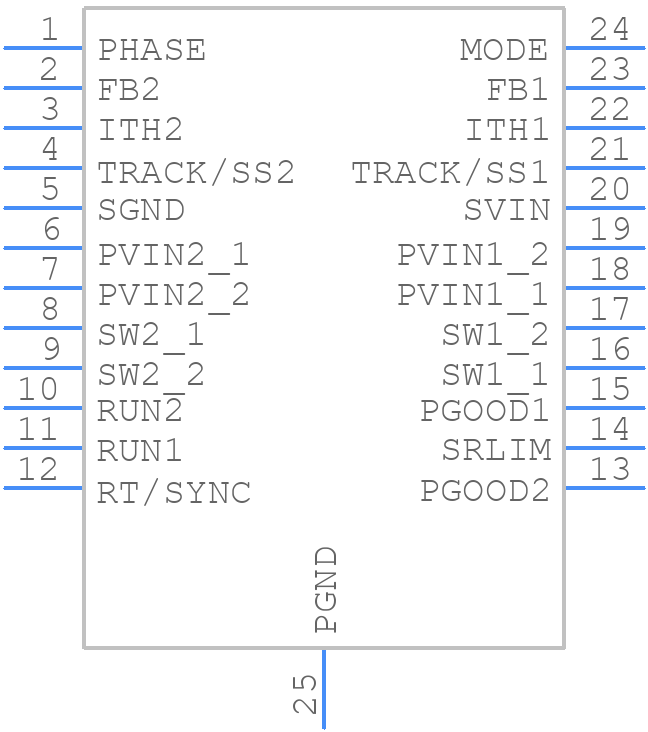

Symbol
LTC3615MPFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3615MPFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 24-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1771 Rev B)
click to zoom
3D Models
LTC3615MPFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 24-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1771 Rev B)
click to zoom

LTC3615MPFE#PBF Details

  • Manufacturer Part Number:

    LTC3615MPFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1771

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE IS ADJUSTABLE DOWN TO 0.6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC3615MPFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3615MPFE involves keeping the high-frequency switching nodes (e.g., SW, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • When selecting an inductor for the LTC3615MPFE, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, a DC resistance of less than 100mΩ, and a core material with low core loss (e.g., ferrite or powdered iron).
  • The maximum ambient temperature for the LTC3615MPFE is 85°C, but the device can operate up to 125°C with derating. It's essential to consider the thermal design and ensure proper heat sinking to maintain a safe operating temperature.
  • Yes, the LTC3615MPFE is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it meets the requirements of the AEC-Q100 automotive standard. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LTC3615MPFE, start by checking the PCB layout, component selection, and soldering quality. Ensure that the input and output capacitors are properly selected and placed, and that the inductor is suitable for the application. Use an oscilloscope to measure the switching waveforms and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
