Please enter a minimum 3 letters or numbers
Technical Content
Part Image

LTC3621EDCB-5#TRMPBF - Analog Devices

Description: IC REG BUCK 5V 1A SYNC 6DFN

Download LTC3621EDCB-5#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

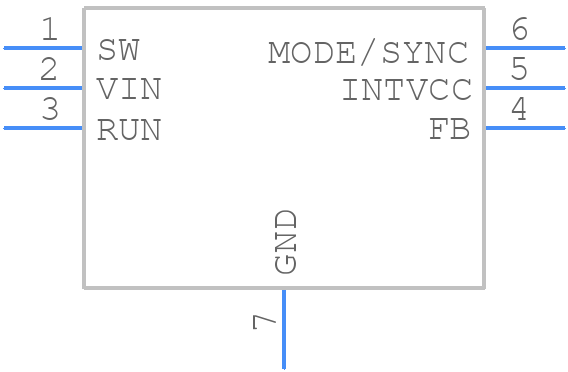

Symbol
LTC3621EDCB-5#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3621EDCB-5#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom
3D Models
LTC3621EDCB-5#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom

LTC3621EDCB-5#TRMPBF Details

  • Manufacturer Part Number:

    LTC3621EDCB-5#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 3 MM, LEAD FREE, PLASTIC, MO-229, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC6,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1160 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC3621EDCB-5#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3621 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise coupling.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, check that the input and output capacitors meet the recommended ESR and ESL requirements. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) between the VOUT pin and GND to improve stability.
  • The LTC3621 is rated for operation from -40°C to 125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to derate the device's performance and consider thermal management techniques for high-temperature applications.
  • Yes, the LTC3621 is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process and meets the requirements of various automotive standards, such as AEC-Q100. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the LTC3621, start by verifying the input voltage, output voltage, and current levels using an oscilloscope or multimeter. Check the device's pin voltages and currents to identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues. If the problem persists, contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3621EDCB-5#TRMPBF Overview

Use the download button to access the LTC3621EDCB-5#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LTC3621EDCB-5#TRMPBF

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
