LTC3621EDCB-5#TRPBF - Analog Devices

Description: 17V, 1A Synchronous Step-Down Regulator with 3.5μA Quiescent Current

Download LTC3621EDCB-5#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

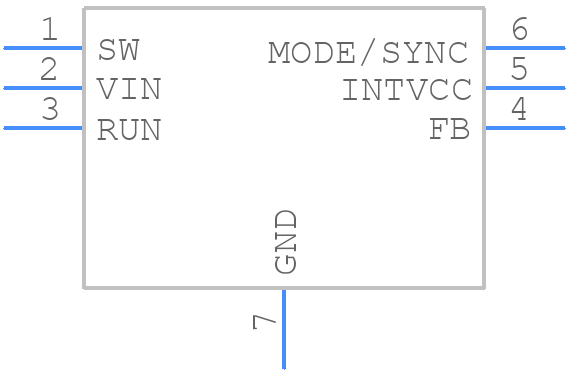

Symbol
LTC3621EDCB-5#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3621EDCB-5#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)_2022
click to zoom
3D Models
LTC3621EDCB-5#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)_2022
click to zoom

LTC3621EDCB-5#TRPBF Details

  • Manufacturer Part Number:

    LTC3621EDCB-5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.075 V

  • Output Voltage-Min:

    4.925 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC6,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1160 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC3621EDCB-5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3621EDCB-5#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value of at least 22uF. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
  • The LTC3621EDCB-5#TRPBF has an operating ambient temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C. The device should be derated for temperatures above 85°C to ensure reliable operation.
  • To ensure stability, the LTC3621EDCB-5#TRPBF requires a minimum output capacitance of 22uF, and the output capacitor should be placed close to the device. Additionally, the input and output voltage rails should be well-filtered, and the device should be operated within the recommended input voltage range.
  • The typical efficiency of the LTC3621EDCB-5#TRPBF is around 95% at a 5V input and 3.3V output, with a load current of 1A. However, the actual efficiency may vary depending on the input voltage, output voltage, and load current.
