LTC3621HMS8E-2#PBF - Analog Devices

Description: Conv DC-DC 2.7V to 17V Step Down Single-Out 0.6V to 17V 1A Automotive 8-Pin MSOP EP Tube

Download LTC3621HMS8E-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

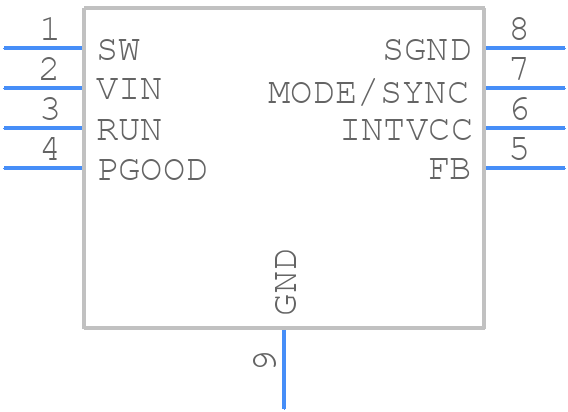

LTC3621HMS8E-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3621HMS8E-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LTC3621HMS8E-2#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LTC3621HMS8E-2#PBF Details

  • Manufacturer Part Number:

    LTC3621HMS8E-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2600 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3621HMS8E-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3621HMS8E-2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and EMI.
  • The selection of input and output capacitors for the LTC3621HMS8E-2#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input or output voltage.
  • The LTC3621HMS8E-2#PBF can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management to ensure reliable operation.
  • Yes, the LTC3621HMS8E-2#PBF is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary standards and certifications for the application.
  • To troubleshoot issues with the LTC3621HMS8E-2#PBF, start by checking the input and output voltages, currents, and temperatures. Ensure that the device is properly soldered and that the PCB layout is correct. Check for any signs of physical damage or contamination. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices Inc. for further assistance if needed.
