LTC3625EDE-1#PBF - Analog Devices

Description: Battery Management 1A High Efficiency 2-Cell SuperCap Charger with Programmable Charge Current

Download LTC3625EDE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

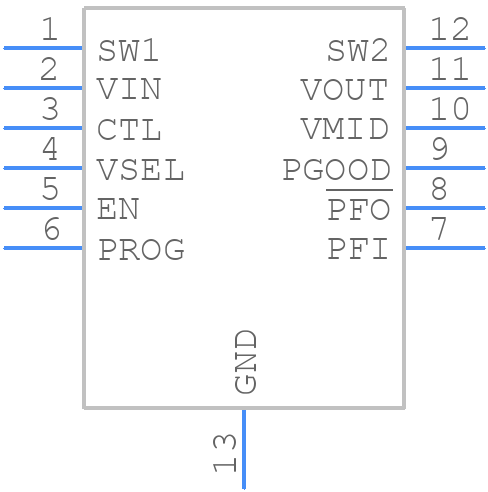

Symbol
LTC3625EDE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3625EDE-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN
click to zoom
3D Models
LTC3625EDE-1#PBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN
click to zoom

LTC3625EDE-1#PBF Details

  • Manufacturer Part Number:

    LTC3625EDE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 4 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WGED, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3625EDE-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3625EDE-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and EMI.
  • The selection of input and output capacitors for the LTC3625EDE-1#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The maximum ambient temperature range for the LTC3625EDE-1#PBF is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • To ensure the LTC3625EDE-1#PBF is stable and doesn't oscillate, it's recommended to follow the layout guidelines in the datasheet, use a sufficient output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the device's feedback loop should be properly compensated, and the output voltage should be monitored to ensure it's within the desired range.
  • Yes, the LTC3625EDE-1#PBF is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Analog Devices Inc's application engineers to ensure the device meets the specific requirements of the application.
